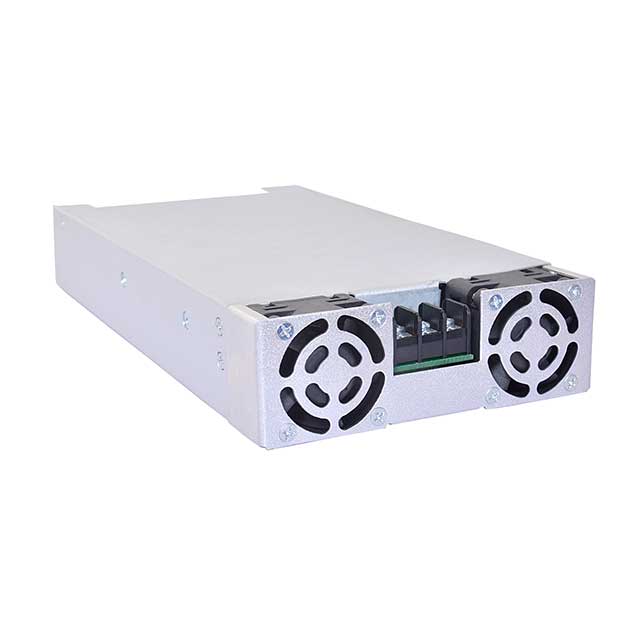

MBE1000-1T48

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 48V 20.83A 1000W 15-PIN

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 48V 20.83A 1000W 15-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	MBE1000-1T48

Applications	Medical
Approval Agency	CE, NEMKO
Current - Output 1	20.83 A
Efficiency	93 %
Features	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	1 kW
Size / Dimension [x]	9.51 in
Size / Dimension [x]	241.6 mm
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC, 390 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4.245 kV
Voltage - Output 1	48 V

AC/DC POWER SUPPLY SINGLE-OUT 48V 20.83A 1000W 15-PIN

Part	Minimum Load Required	Features	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Mounting Type	Current - Output 1	Number of Outputs	Power (Watts)	Applications	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Approval Agency
Bel Power Solutions MBE1000-1T48		Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	48 V	9.51 in	1.61 "	127 mm	41 mm	5 "	241.6 mm	Enclosed	Chassis Mount	20.83 A	1	1 kW	Medical	93 %	85 VAC, 120 VDC	264 VAC, 390 VDC	4.245 kV	CE, NEMKO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 453.36
Digikey	Bulk	1	$ 383.96
		5	$ 371.96

General part information

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 390 VDC Input
