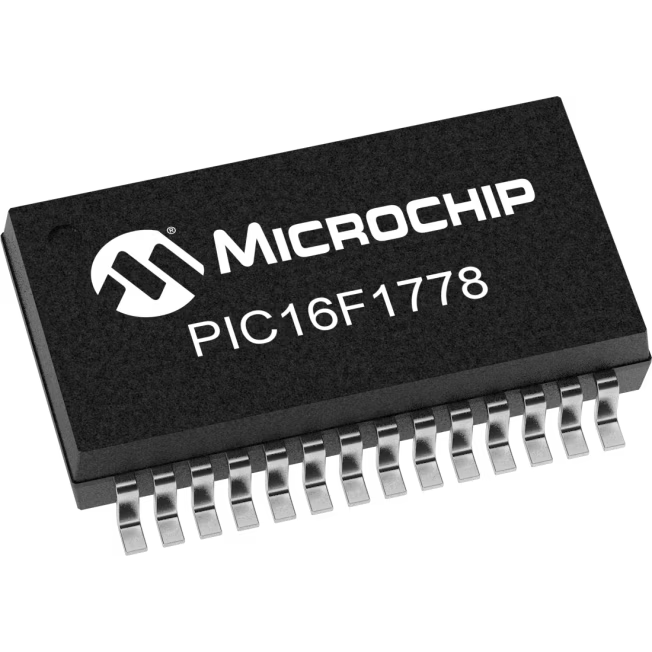

PIC16F1778-I/SP

Active

28KB FLASH, 2KB RAM, HEF, HS COMP, 10B DAC, OPAMP, COG, ZCD, PRG, 100MA I/OS, PPS, 10/16B PWMS, SPI/I2C, EUSART 28 SPDIP .300IN

Find alt

Alpha

PIC16F1778-I/SP

Active

Microchip Technology

28KB FLASH, 2KB RAM, HEF, HS COMP, 10B DAC, OPAMP, COG, ZCD, PRG, 100MA I/OS, PPS, 10/16B PWMS, SPI/I2C, EUSART 28 SPDIP .300IN

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

PIC16F1778 Series

PIC16(L)F177X microcontrollers feature a high level of integration of Intelligent Analog and digital peripherals for a wide range of applications, such as lighting, power supplies, battery charging, motor control and other general purpose applications. These devices deliver multiple Op Amps, 5-/10-bit DACs, High-Speed Comparators, 10-bit ADC, 10-/16-bit PWMs, Programmable Ramp Generator (PRG) and other peripherals that can be connected internally to create closed loop systems without using pins or PCB area. The 10 and 16-bit PWMs, the Digital Signal Modulator (DSM) and tri-state output Op Amp can be used together to create a LED dimming engine. The Peripheral Pin Select (PPS) functionality provides flexibility, eases PCB layout and peripheral utilization by allowing digital peripheral pin mapping to any I/O.

Technical Specifications

Parameters and characteristics for this part

Specification	PIC16F1778-I/SP

A/D Channels	17 count
A/D Resolution (bits)	10 bit
Connectivity	I2C, LINbus, UART, SPI, USART
Core Processor	PIC
Core Size (Bit Width)	8 Bit
D/A Channels	3 count
D/A Resolution (bits)	10 bit, 5 bit
EEPROM Size (Depth)	128
EEPROM Size (Width)	8 bit
Mounting Type	Through Hole
Number of I/O	25
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package Length	0.3 in
Package Name	28-DIP, 28-SPDIP
Package Width	7.62 mm
Peripherals	WDT, PWM, Brown-out Detect, POR, Reset
Program Memory Depth	16 K
Program Memory Size	28 KB
Program Memory Type	FLASH
Program Memory Width	14
RAM Size Depth	2 K
RAM Size Width	8 bit
Speed	32 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	2.3 V

PIC16F1778 Series

Part	Package Width	Package Name	Package Length	Oscillator Type	EEPROM Size (Width)	EEPROM Size (Depth)	Number of I/O	A/D Channels	D/A Resolution (bits)	A/D Resolution (bits)	D/A Channels	Speed	Connectivity	Peripherals	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Program Memory Type	Core Size (Bit Width)	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Program Memory Size	Program Memory Depth	Program Memory Width	RAM Size Depth	RAM Size Width	Core Processor	Package / Case
Microchip Technology PIC16F1778T-I/SO	7.5 mm	28-SOIC	0.295 in	Internal	8 bit	128	25	17 count	5 bit 10 bit	10 bit	3 count	32 MHz	I2C LINbus SPI UART USART	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	FLASH	8 Bit	Surface Mount	85 °C	-40 °C	28 KB	16 K	14	2 K	8 bit	PIC
Microchip Technology PIC16F1778-I/SP	7.62 mm	28-DIP 28-SPDIP	0.3 in	Internal	8 bit	128	25	17 count	5 bit 10 bit	10 bit	3 count	32 MHz	I2C LINbus SPI UART USART	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	FLASH	8 Bit	Through Hole	85 °C	-40 °C	28 KB	16 K	14	2 K	8 bit	PIC
Microchip Technology PIC16F1778-I/MX	6 mm	28-UQFN	6 mm	Internal	8 bit	128	25	17 count	5 bit 10 bit	10 bit	3 count	32 MHz	I2C LINbus SPI UART USART	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	FLASH	8 Bit	Surface Mount	85 °C	-40 °C	28 KB	16 K	14	2 K	8 bit	PIC	28-UQFN Exposed Pad
Microchip Technology PIC16LF1778T-I/SO	7.5 mm	28-SOIC	0.295 in	Internal	8 bit	128	25	17 count	5 bit 10 bit	10 bit	3 count	32 MHz	I2C LINbus SPI UART USART	Brown-out Detect POR PWM Reset WDT	1.8 V	3.6 V	FLASH	8 Bit	Surface Mount	85 °C	-40 °C	28 KB	16 K	14	2 K	8 bit	PIC
Microchip Technology PIC16F1778T-I/SS	5.3 mm	28-SSOP	0.209 in	Internal	8 bit	128	25	17 count	5 bit 10 bit	10 bit	3 count	32 MHz	I2C LINbus SPI UART USART	Brown-out Detect POR PWM Reset WDT	2.3 V	5.5 V	FLASH	8 Bit	Surface Mount	85 °C	-40 °C	28 KB	16 K	14	2 K	8 bit	PIC
Microchip Technology PIC16LF1778-E/MX	6 mm	28-UQFN	6 mm	Internal	8 bit	128	25	17 count	5 bit 10 bit	10 bit	3 count	32 MHz	I2C LINbus SPI UART USART	Brown-out Detect POR PWM Reset WDT	1.8 V	3.6 V	FLASH	8 Bit	Surface Mount	125 °C	-40 °C	28 KB	16 K	14	2 K	8 bit	PIC	28-UQFN Exposed Pad
Microchip Technology PIC16LF1778T-I/SS	5.3 mm	28-SSOP	0.209 in	Internal	8 bit	128	25	17 count	5 bit 10 bit	10 bit	3 count	32 MHz	I2C LINbus SPI UART USART	Brown-out Detect POR PWM Reset WDT	1.8 V	3.6 V	FLASH	8 Bit	Surface Mount	85 °C	-40 °C	28 KB	16 K	14	2 K	8 bit	PIC
Microchip Technology PIC16LF1778-E/SP	7.62 mm	28-DIP 28-SPDIP	0.3 in	Internal	8 bit	128	25	17 count	5 bit 10 bit	10 bit	3 count	32 MHz	I2C LINbus SPI UART USART	Brown-out Detect POR PWM Reset WDT	1.8 V	3.6 V	FLASH	8 Bit	Through Hole	125 °C	-40 °C	28 KB	16 K	14	2 K	8 bit	PIC
Microchip Technology PIC16LF1778-I/SS	5.3 mm	28-SSOP	0.209 in	Internal	8 bit	128	25	17 count	5 bit 10 bit	10 bit	3 count	32 MHz	I2C LINbus SPI UART USART	Brown-out Detect POR PWM Reset WDT	1.8 V	3.6 V	FLASH	8 Bit	Surface Mount	85 °C	-40 °C	28 KB	16 K	14	2 K	8 bit	PIC
Microchip Technology PIC16LF1778-I/SO	7.5 mm	28-SOIC	0.295 in	Internal	8 bit	128	25	17 count	5 bit 10 bit	10 bit	3 count	32 MHz	I2C LINbus SPI UART USART	Brown-out Detect POR PWM Reset WDT	1.8 V	3.6 V	FLASH	8 Bit	Surface Mount	85 °C	-40 °C	28 KB	16 K	14	2 K	8 bit	PIC
