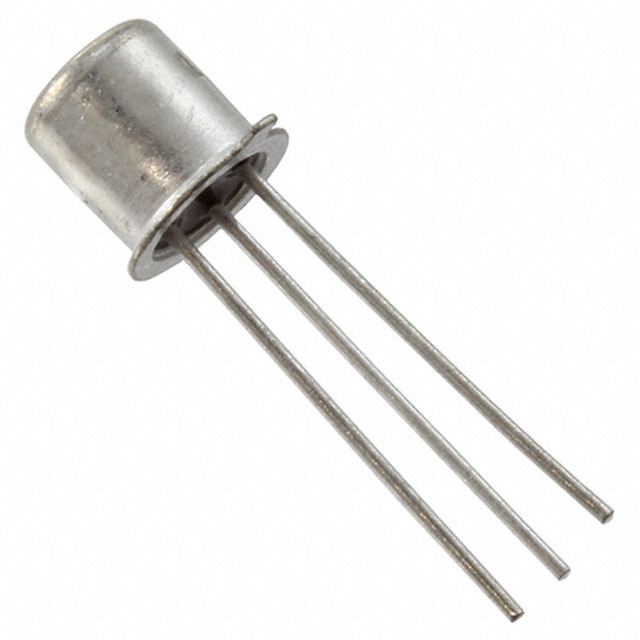

JANTX2N2221AL

Active

Microsemi Corporation

TRANS NPN 50V 0.8A TO18

Search across all available documentation for this part.

Active

Microsemi Corporation

TRANS NPN 50V 0.8A TO18

Technical Specifications

Parameters and characteristics for this part

Specification	JANTX2N2221AL

Current - Collector (Ic) (Max) [Max]	800 mA
Current - Collector Cutoff (Max) [Max]	50 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	40
Grade	Military
Mounting Type	Through Hole
Package / Case	TO-18-3 Metal Can, TO-206AA
Power - Max [Max]	500 mW
Qualification	MIL-PRF-19500/255
Supplier Device Package	TO-18
Supplier Device Package	TO-206AA
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Transistor Type	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Qualification	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Grade	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Mounting Type	Supplier Device Package
Microsemi Corporation JANSF2N2221AUB	NPN	50 nA	500 mW	MIL-PRF-19500/255	50 V	UB	40	3-SMD No Lead	Military	800 mA	1 V	Surface Mount
Microsemi Corporation JANTX2N2221AL	NPN	50 nA	500 mW	MIL-PRF-19500/255	50 V	TO-18	40	TO-18-3 Metal Can TO-206AA	Military	800 mA	1 V	Through Hole	TO-206AA
Microsemi Corporation JANTXV2N2221AUA	NPN	50 nA	650 mW	MIL-PRF-19500/255	50 V	UA	40	4-SMD No Lead	Military	800 mA	1 V	Surface Mount
Microsemi Corporation JANS2N2221AUBC	NPN	50 nA	500 mW	MIL-PRF-19500/255	50 V	UBC	40	3-SMD No Lead	Military	800 mA	1 V	Surface Mount
Microsemi Corporation JAN2N2221A	NPN	50 nA	500 mW	MIL-PRF-19500/255	50 V	TO-18	40	TO-18-3 Metal Can TO-206AA	Military	800 mA	1 V	Through Hole	TO-206AA
Microsemi Corporation JANSR2N2221AUB	NPN	50 nA	500 mW	MIL-PRF-19500/255	50 V	UB	40	3-SMD No Lead	Military	800 mA	1 V	Surface Mount
Microsemi Corporation JAN2N2221AL	NPN	50 nA	500 mW	MIL-PRF-19500/255	50 V	TO-18	40	TO-18-3 Metal Can TO-206AA	Military	800 mA	1 V	Through Hole	TO-206AA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.78

General part information

Bipolar (BJT) Transistor NPN 50 V 800 mA 500 mW Through Hole TO-18 (TO-206AA)
