1.30270.0212400

Obsolete

RAFI USA

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Obsolete

RAFI USA

CONFIG SW BODY PUSHBUTTON ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	1.30270.0212400

(Select First, Then Apply Filters) Compatible Series	Rafix 22 FS
Actuator Type	Pushbutton, Round
Illumination	Illuminated - Yellow
Panel Cutout Dimensions	22.3 mm
Requires	Illumination Source, Contact Block(s)
Type	Momentary

Part	Requires	(Select First, Then Apply Filters) Compatible Series	Panel Cutout Dimensions	Actuator Type	Type	Illumination
RAFI USA 1.30.270.071/2300	Contact Block(s) Illumination Source	Rafix 22 FS	22.3 mm	Pushbutton Round	Momentary
RAFI USA 1.30.270.031/2500	Contact Block(s) Illumination Source	Rafix 22 FS	22.3 mm	Pushbutton Round	Maintained	Illuminated - Green
RAFI USA 1.30270.0212400	Contact Block(s) Illumination Source	Rafix 22 FS	22.3 mm	Pushbutton Round	Momentary	Illuminated - Yellow
RAFI USA 1.30.270.071/2500	Contact Block(s) Illumination Source	Rafix 22 FS	22.3 mm	Pushbutton Round	Momentary	Illuminated - Green
RAFI USA 1.30.270.221/2300
RAFI USA 1.30.270.021/2300	Contact Block(s) Illumination Source	Rafix 22 FS	22.3 mm	Pushbutton Round	Momentary

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

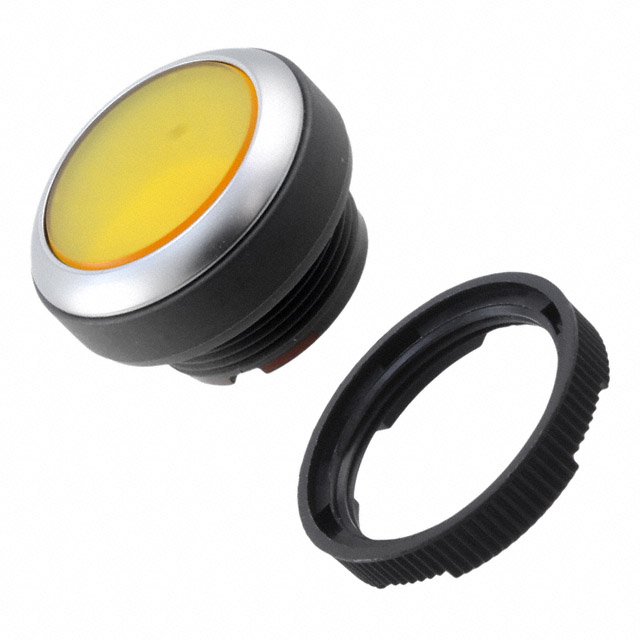

Configurable Switch Body Pushbutton, Round Illuminated - Yellow

Technical documentation and resources

No documents available
