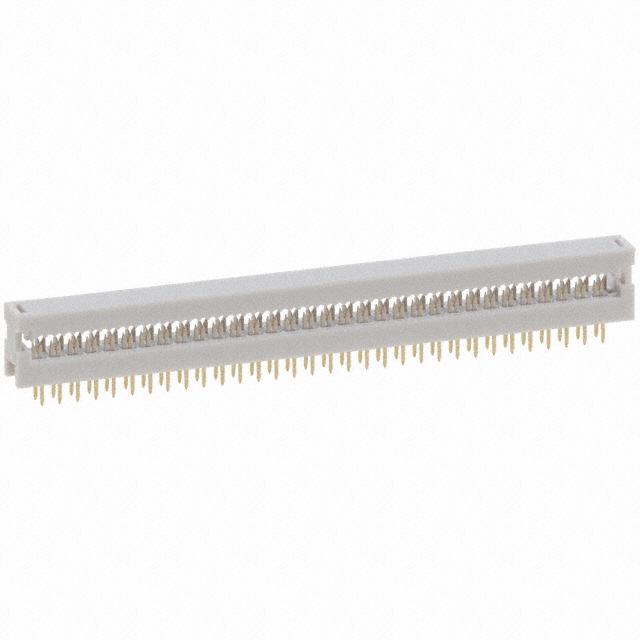

AWLP-64/3.2-T-R
ObsoleteAssmann WSW Components
CONN DIP HDR IDC 64POS VERT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AWLP-64/3.2-T-R |
|---|---|
| Board-Side Pitch | 0.1 in |
| Board-Side Pitch | 2.54 mm |
| Cable Pitch | 1.27 mm |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Tin |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 64 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AWLP 64 Series
64 Position Ribbon Cable, DIP Header Connector Gray IDC Through Hole
