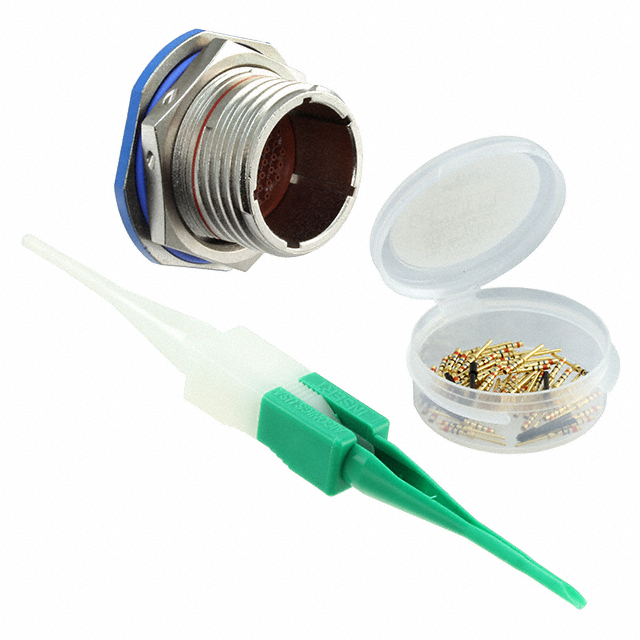

D38999/24ME35PN

Unknown

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 55POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsD38999 Series III Datasheet

D38999/24ME35PN

Unknown

TE Connectivity Raychem Cable Protection

CONN RCPT MALE 55POS GOLD CRIMP

Deep-Dive with AI

DocumentsD38999 Series III Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24ME35PN

Applications	Military, Aerospace
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	55 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Composite
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Termination	Crimp
Voltage Rating	550 VDC, 400 VAC

D38999/24ME Series

Part	Orientation	Current Rating (Amps)	Connector Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Qualification	Mounting Feature	Number of Positions	Ingress Protection	Grade	Applications	Shielding	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Primary Material	Insert Material	Shell Finish	Contact Finish - Mating	Termination	Shell Size, MIL	Shell Size - Insert	Contact Size	Contact Size	Note	Contact Type	Type	Housing Color	Contact Shape	Contact Size
TE Connectivity Raychem Cable Protection D38999/24ME99PN	N	7.5 A 13 A	Male Pins Receptacle	99	17	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	23	Environment Resistant	Military	Aerospace Military	Shielded	Composite	1.27 µm	50 µin	Silver	600 VAC 850 V	-65 ░C	200 °C	Copper Alloy	Composite	Thermoplastic	Electroless Nickel	Gold	Crimp
TE Connectivity Raychem Cable Protection D38999/24ME99SN	N		Receptacle Female Sockets	99	17	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	23	Environment Resistant	Military	Aerospace Military	Shielded	Composite	1.27 µm	50 µin	Silver	600 VAC 850 V	-65 ░C	200 °C	Copper Alloy	Composite	Thermoplastic	Electroless Nickel	Gold	Crimp	E
TE Connectivity Raychem Cable Protection D38999/24ME08SN	N	13 A	Receptacle Female Sockets			MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	8	Environment Resistant	Military	Aerospace Military	Shielded	Composite	1.27 µm	50 µin	Silver	750 Vrms 1050 VDC	-65 ░C	200 °C	Copper Alloy	Composite	Thermoplastic	Electroless Nickel	Gold	Crimp	E	17-8
TE Connectivity Raychem Cable Protection D38999/24ME08PN	N	13 A	Male Pins Receptacle			MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	8	Environment Resistant	Military	Aerospace Military	Shielded	Composite	1.27 µm	50 µin	Silver	750 Vrms 1050 VDC	-65 ░C	200 °C	Copper Alloy	Composite	Thermoplastic	Electroless Nickel	Gold	Crimp	E	17-8
TE Connectivity Raychem Cable Protection D38999/24ME35PN	N		Male Pins Receptacle	35	17	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	55 positions	Environment Resistant	Military	Aerospace Military		Composite	1.27 µm	50 µin		400 VAC 550 VDC	-65 ░C	200 °C	Copper Alloy	Composite	Thermoplastic	Electroless Nickel	Gold	Crimp	E
TE Connectivity Raychem Cable Protection D38999/24ME35HC	C		Male Pins Receptacle	35	17	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	55 positions	Environment Resistant	Military	Aerospace Military	Shielded	Composite	1.27 µm	50 µin	Silver	400 VAC 550 VDC	-65 ░C	200 °C	Copper Alloy	Composite	Thermoplastic	Electroless Nickel	Gold	Crimp	E
TE Connectivity Raychem Cable Protection D38999/24ME26PN	N		Male Pins Receptacle	26	17	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	26	Environment Resistant	Military	Aerospace Military	Shielded	Composite	1.27 µm	50 µin	Silver	600 VAC 850 V	-65 ░C	200 °C	Copper Alloy	Composite	Thermoplastic	Electroless Nickel	Gold	Crimp	E
TE Connectivity Raychem Cable Protection D38999/24ME99AA	A		Receptacle Housing	99	17	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	23	Environment Resistant	Military		Shielded	Composite					-65 ░C	200 °C		Composite	Plastic	Electroless Nickel			E		16 20	2 21	Contacts Not Included	Crimp	For Male Pins	Silver	Circular
TE Connectivity Raychem Cable Protection D38999/24ME06BN	N		Receptacle Housing			MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	6	Environment Resistant	Military		Shielded	Composite					-65 ░C	200 °C		Composite	Plastic	Electroless Nickel			E	17-6			Contacts Not Included	Crimp	For Female Sockets	Silver	Circular	12
TE Connectivity Raychem Cable Protection D38999/24ME26PA	A		Male Pins Receptacle	26	17	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	26	Environment Resistant	Military	Aerospace Military	Shielded	Composite	1.27 µm	50 µin	Silver	600 VAC 850 V	-65 ░C	200 °C	Copper Alloy	Composite	Thermoplastic	Electroless Nickel	Gold	Crimp	E

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 323.29
		10	$ 253.97
		25	$ 232.12
	Bulk	1	$ 366.93

Description

General part information

D38999/24ME Series

55 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

D38999 Series III Datasheet

Datasheet
