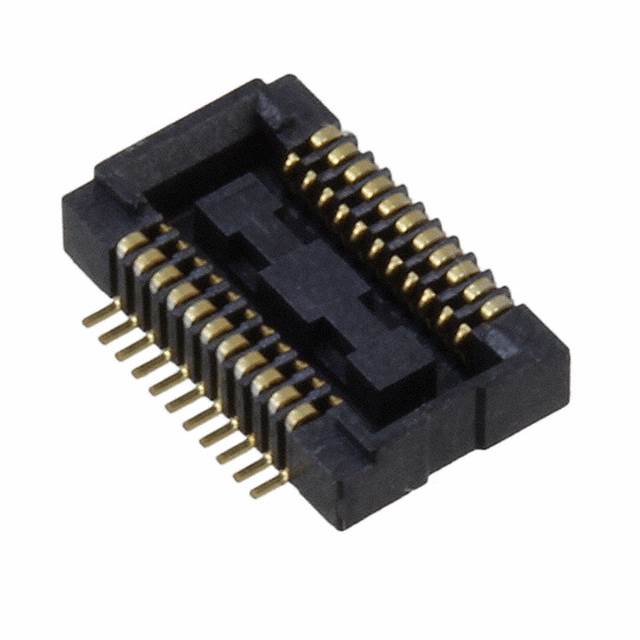

AXK722147G

Obsolete

Panasonic Electric Works

CONN SOCKET 22POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 22POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK722147G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board	0.059 in
Height Above Board	1.5 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	22 positions
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board	Height Above Board	Mated Stacking Heights	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Number of Rows	Number of Positions
Panasonic Electric Works AXK722147G	0.059 in	1.5 mm	1.5 mm	Center Strip Outer Edge Contacts Socket	0.016 in	0.4 mm	Surface Mount	Gold	2	22 positions

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
