5302-24-0

Active

Pomona Electronics

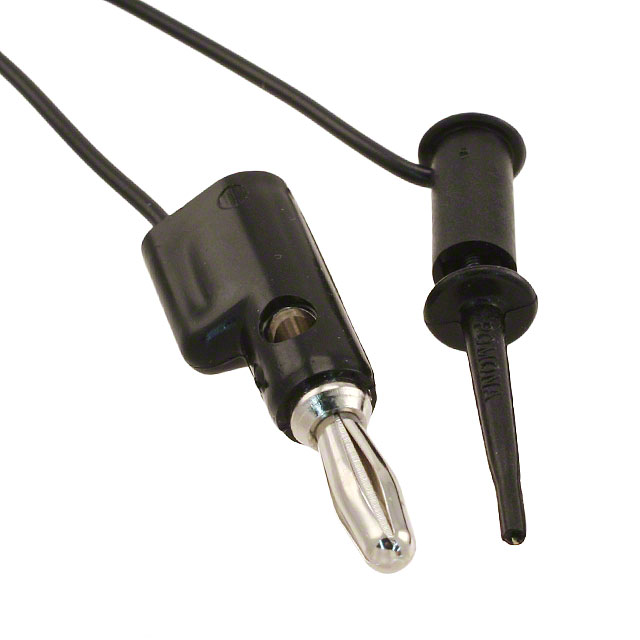

TEST LEAD BANANA TO GRABBER 24"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BANANA TO GRABBER 24"

Technical Specifications

Parameters and characteristics for this part

Specification	5302-24-0

1st Connector	Single, Stackable, Banana Plug
2nd Connector	SMD Pincer
Cable Length	24 "
Cable Length	609.6 mm
Configuration	Banana to Grabber, Hook
Contents	1 Lead, Black
Current Rating (Amps)	0.5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	DC
Voltage - Rated	150 VAC
Wire Gauge	22 AWG

Part	Voltage - Rated	Voltage - Rated	Current Rating (Amps)	Contents	Configuration	2nd Connector	Cable Length	Cable Length	1st Connector	Type	Wire Gauge	Material - Insulation	Stacking Method	Contents [custom]
Pomona Electronics 5302-36-0	DC	150 VAC	0.5 A	1 Lead Black	Banana to Grabber Hook	SMD Pincer	36 in	914.4 mm	Banana Plug Single Stackable	Patch Cord	22 AWG	Poly-Vinyl Chloride (PVC)	Front and Vertical Multi-Stacking
Pomona Electronics 5302-24-0	DC	150 VAC	0.5 A	1 Lead Black	Banana to Grabber Hook	SMD Pincer	24 "	609.6 mm	Banana Plug Single Stackable	Patch Cord	22 AWG	Poly-Vinyl Chloride (PVC)	Front and Vertical Multi-Stacking
Pomona Electronics 5302-24-2	DC	150 VAC	0.5 A	Red	Banana to Grabber Hook	SMD Pincer	24 "	609.6 mm	Banana Plug Single Stackable	Patch Cord	22 AWG	Poly-Vinyl Chloride (PVC)	Front and Vertical Multi-Stacking	1
Pomona Electronics 5302-12-0	DC	150 VAC	0.5 A	1 Lead Black	Banana to Grabber Hook	SMD Pincer	12 in	304.8 mm	Banana Plug Single Stackable	Patch Cord	22 AWG	Poly-Vinyl Chloride (PVC)	Front and Vertical Multi-Stacking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24.0" (609.60mm) Banana Plug, Single, Stackable To SMD Pincer Patch Cord 150VAC, DC

Technical documentation and resources
