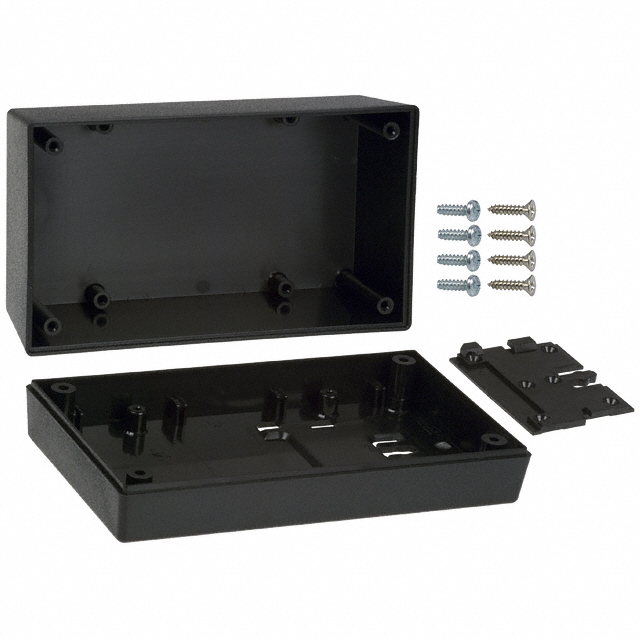

Specification	153W,BK

Area (L x W)	18.3 in²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Wall Mount, PCB Supports
Height	63.5 mm
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	5.62 in
Size / Dimension Width	3.25 in
Thickness	0.1 in
Weight	0.291 lb

153W Series

Part	Weight	Design	Color	Material Flammability Rating	Container Type	Features	Material	Size / Dimension Width	Size / Dimension Length	Thickness	Area (L x W)	Height	Ratings
Serpac 153W,GY	0.291 lb	Hand Held Split Sides	Gray	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	3.25 in	5.62 in	0.1 in	18.3 in²	63.5 mm	IP40 NEMA 1
Serpac 153W,BK	0.291 lb	Hand Held Split Sides	Black	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	3.25 in	5.62 in	0.1 in	18.3 in²	63.5 mm	IP40 NEMA 1
Serpac 153WI,BK	0.291 lb	Hand Held Split Sides	Black	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	3.25 in	5.62 in	0.1 in	18.3 in²	63.5 mm	IP40 NEMA 1
Serpac 153WI,GY	0.291 lb	Hand Held Split Sides	Gray	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	3.25 in	5.62 in	0.1 in	18.3 in²	63.5 mm	IP40 NEMA 1
Serpac 153WI,AL	0.291 lb	Hand Held Split Sides	Almond	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	3.25 in	5.62 in	0.1 in	18.3 in²	63.5 mm	IP40 NEMA 1
Serpac 153W,AL	0.291 lb	Hand Held Split Sides	Almond	UL94 HB	Box	PCB Supports Wall Mount	ABS Plastic	3.25 in	5.62 in	0.1 in	18.3 in²	63.5 mm	IP40 NEMA 1
