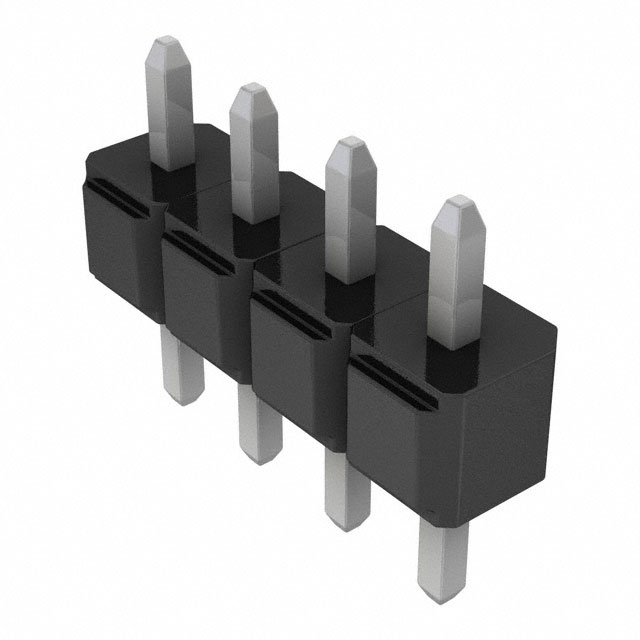

929800-01-04

Obsolete

3M (TC)

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

929800-01-04

Obsolete

3M (TC)

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929800-01-04

Connector Type	Breakaway, Header
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Mating [x]	0.093 "
Contact Length - Mating [x]	2.36 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	8.08 mm
Overall Contact Length	0.318 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

929800 Series

Part	Termination	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Connector Type	Insulation Material	Contact Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Number of Rows	Contact Finish - Post	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions	Material Flammability Rating	Contact Material	Insulation Color	Contact Finish - Mating
3M (TC) 929800-01-36-RK	Solder	Square	-40 °C	105 ░C	8.08 mm	0.318 in	2.5 A	0.093 "	2.36 mm	Breakaway Header	Polycyclohexylenedimethylene Terephthalate (PCT)	Male Pin	Push-Pull	0.11 in	2.79 mm	1	Tin	Unshrouded	5.08 µm	200 µin	All	0.1 in	2.54 mm	Through Hole	36	UL94 V-0	Copper Alloy	Black
3M (TC) 929800-01-34	Solder	Square	-40 °C	105 ░C	8.08 mm	0.318 in	2.5 A	0.093 "	2.36 mm	Breakaway Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	Push-Pull	0.11 in	2.79 mm	1		Unshrouded	2.54 çm	100 çin	All	0.1 in	2.54 mm	Through Hole	34	UL94 V-0	Copper Alloy	Black	Tin-Lead
3M (TC) 929800-01-20	Solder	Square	-40 °C	105 ░C	8.08 mm	0.318 in	2.5 A	0.093 "	2.36 mm	Breakaway Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	Push-Pull	0.11 in	2.79 mm	1		Unshrouded	2.54 çm	100 çin	All	0.1 in	2.54 mm	Through Hole	20	UL94 V-0	Copper Alloy	Black	Tin-Lead
3M (TC) 929800-01-08	Solder	Square	-40 °C	105 ░C	8.08 mm	0.318 in	2.5 A	0.093 "	2.36 mm	Breakaway Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	Push-Pull	0.11 in	2.79 mm	1		Unshrouded	2.54 çm	100 çin	All	0.1 in	2.54 mm	Through Hole	8	UL94 V-0	Copper Alloy	Black	Tin-Lead
3M (TC) 929800-01-04	Solder	Square	-40 °C	105 ░C	8.08 mm	0.318 in	2.5 A	0.093 "	2.36 mm	Breakaway Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	Push-Pull	0.11 in	2.79 mm	1		Unshrouded	2.54 çm	100 çin	All	0.1 in	2.54 mm	Through Hole	4	UL94 V-0	Copper Alloy	Black	Tin-Lead
3M (TC) 929800-01-03	Solder	Square	-40 °C	105 ░C	8.08 mm	0.318 in	2.5 A	0.093 "	2.36 mm	Breakaway Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	Push-Pull	0.11 in	2.79 mm	1		Unshrouded	2.54 çm	100 çin	All	0.1 in	2.54 mm	Through Hole		UL94 V-0	Copper Alloy	Black	Tin-Lead
3M (TC) 929800-01-11	Solder	Square	-40 °C	105 ░C	8.08 mm	0.318 in	2.5 A	0.093 "	2.36 mm	Breakaway Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	Push-Pull	0.11 in	2.79 mm	1		Unshrouded	2.54 çm	100 çin	All	0.1 in	2.54 mm	Through Hole	11	UL94 V-0	Copper Alloy	Black	Tin-Lead
3M (TC) 929800-01-05	Solder	Square	-40 °C	105 ░C	8.08 mm	0.318 in	2.5 A	0.093 "	2.36 mm	Breakaway Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	Push-Pull	0.11 in	2.79 mm	1		Unshrouded	2.54 çm	100 çin	All	0.1 in	2.54 mm	Through Hole		UL94 V-0	Copper Alloy	Black	Tin-Lead
3M (TC) 929800-01-28	Solder	Square	-40 °C	105 ░C	8.08 mm	0.318 in	2.5 A	0.093 "	2.36 mm	Breakaway Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	Push-Pull	0.11 in	2.79 mm	1		Unshrouded	2.54 çm	100 çin	All	0.1 in	2.54 mm	Through Hole	28	UL94 V-0	Copper Alloy	Black	Tin-Lead
3M (TC) 929800-01-29	Solder	Square	-40 °C	105 ░C	8.08 mm	0.318 in	2.5 A	0.093 "	2.36 mm	Breakaway Header	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Male Pin	Push-Pull	0.11 in	2.79 mm	1		Unshrouded	2.54 çm	100 çin	All	0.1 in	2.54 mm	Through Hole	29	UL94 V-0	Copper Alloy	Black	Tin-Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

929800 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)
