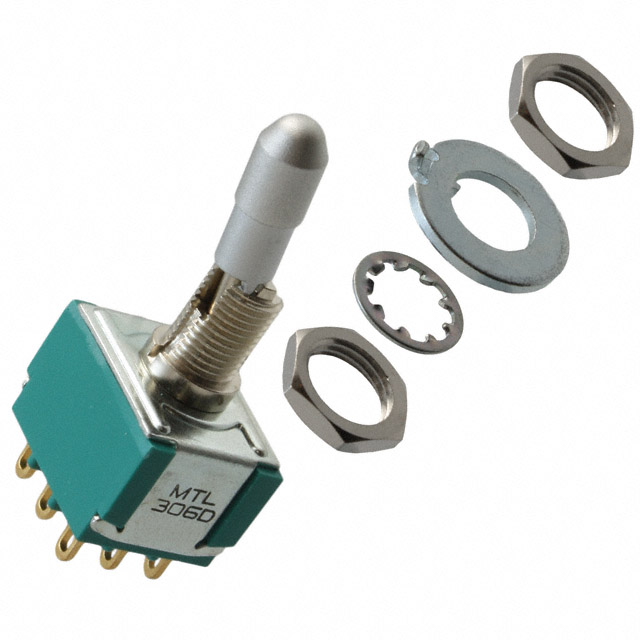

MTL306D
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE ON NONE ON 3PDT LOCKING LEVER WIRE LUG 6A 250VAC 28VDC PANEL MOUNT WITH THREADS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTL306D
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE ON NONE ON 3PDT LOCKING LEVER WIRE LUG 6A 250VAC 28VDC PANEL MOUNT WITH THREADS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTL306D |
|---|---|
| Actuator Length [x] | 17 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Locking Lever |
| Bushing Thread | 1/4-40 |
| Circuit | 3PDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 80000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 6.4 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.09 | |
| 10 | $ 35.58 | |||
| 25 | $ 33.92 | |||
| 50 | $ 31.65 | |||
| 100 | $ 30.41 | |||
| 250 | $ 28.34 | |||
Description
General part information
MTL306 Series
Toggle Switch 3PDT Panel Mount
