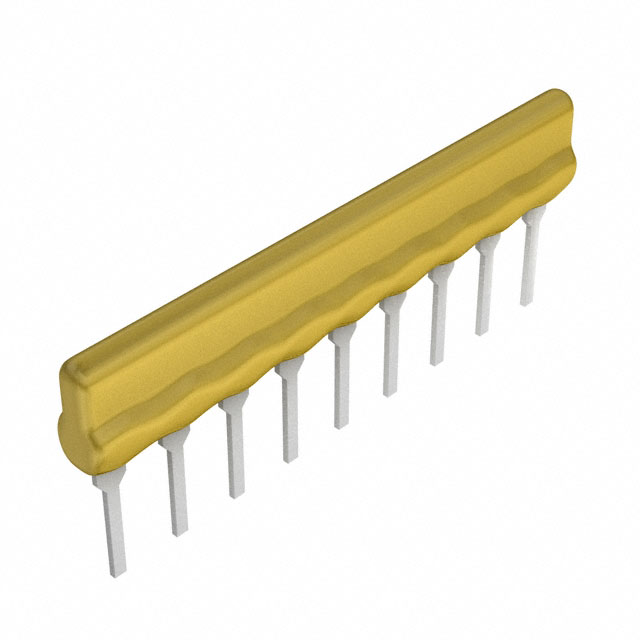

4609X-101-473LF

Active

Bourns Inc.

RES ARRAY 8 RES 47K OHM 9SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 4300 vs. 4600 Model Bulletin

4609X-101-473LF

Active

Bourns Inc.

RES ARRAY 8 RES 47K OHM 9SIP

Deep-Dive with AI

DocumentsDatasheet 4300 vs. 4600 Model Bulletin

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4609X-101-473LF

Circuit Type	Bussed
Height - Seated (Max) [Max] [z]	5.08 mm
Height - Seated (Max) [Max] [z]	0.2 "
Mounting Type	Through Hole
Number of Pins	9
Number of Resistors	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	9-SIP
Power Per Element	200 mW
Resistance (Ohms)	47k
Size / Dimension [x]	0.898 in
Size / Dimension [x]	22.81 mm
Size / Dimension [y]	0.098 in
Size / Dimension [y]	2.49 mm
Supplier Device Package	9-SIP
Temperature Coefficient	100 ppm/°C
Tolerance	2 %

4609X Series

Part	Package / Case	Mounting Type	Number of Resistors	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Pins	Power Per Element	Temperature Coefficient	Circuit Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Resistance (Ohms)	Tolerance	Resistance (Ohms)
Bourns Inc. 4609X-AP1-472LF	9-SIP	Through Hole	8	5.08 mm	0.2 "	9	200 mW	100 ppm/°C	Bussed	0.098 in	0.898 in	22.81 mm	2.49 mm	-55 °C	125 °C	9-SIP	4.7k	2 %
Bourns Inc. 4609X-AP1-221LF	9-SIP	Through Hole	8	5.08 mm	0.2 "	9	200 mW	100 ppm/°C	Bussed	0.098 in	0.898 in	22.81 mm	2.49 mm	-55 °C	125 °C	9-SIP		2 %	220 Ohms
Bourns Inc. 4609X-101-413LF	9-SIP	Through Hole	8	5.08 mm	0.2 "	9	200 mW	100 ppm/°C	Bussed	0.098 in	0.898 in	22.81 mm	2.49 mm	-55 °C	125 °C	9-SIP	41k	2 %
Bourns Inc. 4609X-101-390LF	9-SIP	Through Hole	8	5.08 mm	0.2 "	9	200 mW	250 ppm/°C	Bussed	0.098 in	0.898 in	22.81 mm	2.49 mm	-55 °C	125 °C	9-SIP		1 Ohm	39 Ohms
Bourns Inc. 4609X-101-154LF	9-SIP	Through Hole	8	5.08 mm	0.2 "	9	200 mW	100 ppm/°C	Bussed	0.098 in	0.898 in	22.81 mm	2.49 mm	-55 °C	125 °C	9-SIP	150k	2 %
Bourns Inc. 4609X-AP1-203LF	9-SIP	Through Hole	8	5.08 mm	0.2 "	9	200 mW	100 ppm/°C	Bussed	0.098 in	0.898 in	22.81 mm	2.49 mm	-55 °C	125 °C	9-SIP		2 %	20 kOhms
Bourns Inc. 4609X-101-622LF	9-SIP	Through Hole	8	5.08 mm	0.2 "	9	200 mW	100 ppm/°C	Bussed	0.098 in	0.898 in	22.81 mm	2.49 mm	-55 °C	125 °C	9-SIP		2 %	6.2 kΩ
Bourns Inc. 4609X-101-473LF	9-SIP	Through Hole	8	5.08 mm	0.2 "	9	200 mW	100 ppm/°C	Bussed	0.098 in	0.898 in	22.81 mm	2.49 mm	-55 °C	125 °C	9-SIP	47k	2 %
Bourns Inc. 4609X-101-334LF	9-SIP	Through Hole	8	5.08 mm	0.2 "	9	200 mW	100 ppm/°C	Bussed	0.098 in	0.898 in	22.81 mm	2.49 mm	-55 °C	125 °C	9-SIP		2 %	330 kOhms
Bourns Inc. 4609X-101-333LF	9-SIP	Through Hole	8	5.08 mm	0.2 "	9	200 mW	100 ppm/°C	Bussed	0.098 in	0.898 in	22.81 mm	2.49 mm	-55 °C	125 °C	9-SIP	33k	2 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.50
		10	$ 0.36
		200	$ 0.15
		1000	$ 0.09
		5000	$ 0.07
		10000	$ 0.07

Description

General part information

4609X Series

47k Ohm ±2% 200mW Power Per Element Bussed 8 Resistor Network/Array ±100ppm/°C 9-SIP
