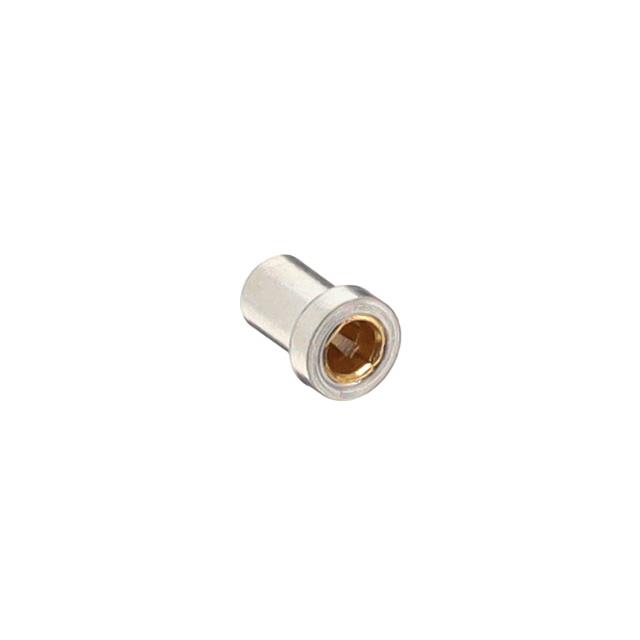

0305-1-15-80-47-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
0305-1-15-80-47-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0305-1-15-80-47-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.037 " |
| Accepts Pin Diameter [Max] | 0.94 mm |
| Accepts Pin Diameter [Min] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.025 " |
| Accepts Square Pin Size [diameter] | 0.64 mm |
| Accepts Square Pin Size [diameter] | 0.025 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.93 mm |
| Flange Diameter [diameter] | 0.076 in |
| Length - Overall | 2.67 mm |
| Length - Overall | 0.105 in |
| Mounting Hole Diameter [diameter] | 0.061 " |
| Mounting Hole Diameter [diameter] | 1.55 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.051 in |
| Pin Hole Diameter [diameter] | 1.3 mm |
| Socket Depth | 3.94 mm |
| Socket Depth | 0.155 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.42 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.18 | |||
| 50 | $ 1.16 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.00 | |||
| 500 | $ 0.92 | |||
| 1000 | $ 0.79 | |||
| 3000 | $ 0.73 | |||
Description
General part information
0305-1 Series
Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) No Tail Solder
Documents
Technical documentation and resources
No documents available
