HEV2AN-P-DC12V

Active

Panasonic Electric Works

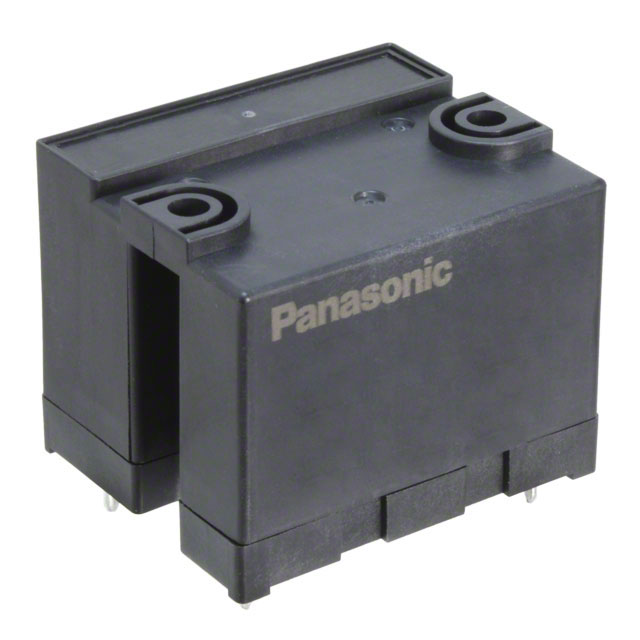

RELAY GEN PURPOSE DPST 20A 12V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Relay Type	Switching Voltage [Max]	Must Release Voltage	Coil Type	Coil Voltage	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Must Operate Voltage	Seal Rating	Load - Max Switching	Termination Style	Contact Material	Operate Time	Release Time	Mounting Type	Coil Insulation	Contact Rating (Current)	Coil Resistance	Approval Agency
Panasonic Electric Works HEV2AN-P-DC12V	General Purpose	1000 VDC	0.6 VDC	Non Latching	12 VDC	160 mA	-40 °C	55 °C	DPST-NO (2 Form A)	8.4 VDC	Sealed - Flux Protection	20000 W	PC Pin	Silver Nickel (AgNi)	30 ms	10 ms	Through Hole	Class F	20 A	75 Ohms	cURus VDE
Panasonic Electric Works HEV2AN-P-DC9V	General Purpose	1000 VDC	0.45 VDC	Non Latching	9 VDC	213 mA	-40 °C	55 °C	DPST-NO (2 Form A)	6.3 VDC	Sealed - Flux Protection	20000 W	PC Pin	Silver Nickel (AgNi)	30 ms	10 ms	Through Hole	Class F	20 A	42 Ohms	cURus VDE
Panasonic Electric Works HEV2AN-P-DC24V	General Purpose	1000 VDC	1.2 VDC	Non Latching	24 VDC	80 mA	-40 °C	55 °C	DPST-NO (2 Form A)	16.8 VDC	Sealed - Flux Protection	20000 W	PC Pin	Silver Nickel (AgNi)	30 ms	10 ms	Through Hole	Class F	20 A	300 Ohms	cURus VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
