FFB.1S.250.CLAC52

Active

LEMO

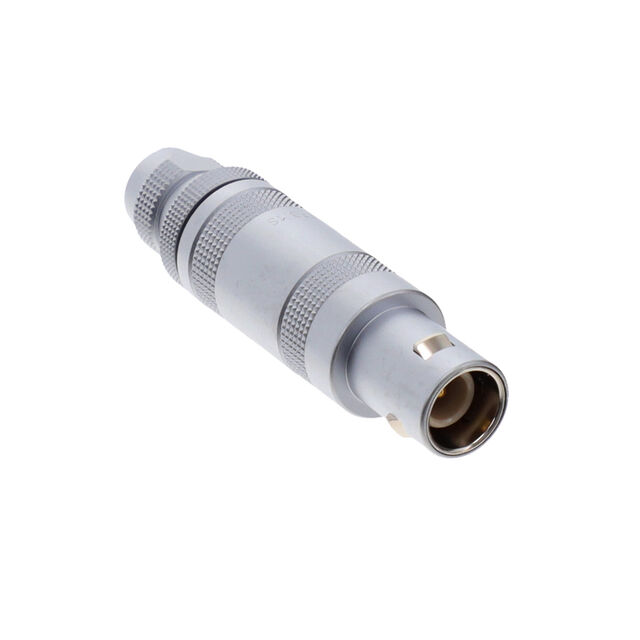

CONN COAX PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFB.1S.250.CLAC52

Active

LEMO

CONN COAX PLUG STR 50 OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.68
		10	$ 37.37
		25	$ 35.76
		50	$ 34.60
		100	$ 33.45
		250	$ 31.60

Description

General part information

FFB.1S Series

Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFB.1S.250.CLAC52	FFB.1S Series

Accessory Type	-	Back-Nut, Collet
Backshell Material, Plating	-	Brass, Chrome
Body Finish	Chrome	Chrome
Body Material	Brass	Brass
Cable Group	174A, 188A, 196A, 316B, 178B, RG-122, 174	400, 223, 187A, 179B, RG-58C, 302, 59B, 174A, 188A, 196A, 316B, 178B, RG-122, 174
Cable Opening	-	0.232 - 5.7 mm
Cable Opening	-	0.087 - 0.126 in
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	4.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.126 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.165 in
Cable Opening	-	3.2 mm
Cable Opening	-	0.205 - 0.224 in
Cable Opening	-	5.9 - 6.5 mm
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Color	-	Silver
Connector Style	Coaxial	Coaxial
Connector Type	Male Pin, Plug	Female Sockets, Plug, Male Pins, Male Pin, Insert Shell, Insert
Contact Finish - Mating	-	Gold
Contact Material	-	Bronze, Brass
Contact Termination	Solder	Solder
Current Rating (Amps)	-	4 - 8 A
Dielectric Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	-	Backshell, Insert Only, Requires Shell
For Use With/Related Products	-	1S Series Connector
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Ingress Protection	IP50	IP50
Insert Material	-	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Material	-	Brass
Material Flammability Rating	-	UL94 V-0
Mating Cycles	1000	1000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included; Insert Not Included
Number of Ports	1	1
Number of Positions	-	1
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	405
Shield Termination	Clamp	Clamp
Shielding	-	Shielded

FFB.1S Series

CONN PLUG FMALE 1P GOLD SLDR CUP

Part	Cable Opening [custom]	Cable Opening [custom]	Fastening Type	Insert Material	Number of Positions	Shell Material	Color	Ingress Protection	Current Rating (Amps)	Mounting Type	Orientation	Contact Material	Contact Finish - Mating	Shielding	Connector Type	Shell Finish	Features	Backshell Material, Plating	Shell Size - Insert	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Cable Group	Contact Termination	Shield Termination	Connector Style	Housing Color	Center Contact Material	Impedance	Number of Ports	Center Contact Plating	Body Finish	Body Material	Dielectric Material	Material Flammability Rating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [custom]	Material	For Use With/Related Products	Accessory Type
LEMO FFB.1S.405.CTLC32	2.2 mm, 3.2 mm	0.087 in, 0.126 in	Push-Pull	Polytetrafluoroethylene (PTFE)	1	Brass	Silver	IP50	8 A	Free Hanging (In-Line)	Keyed	Bronze	Gold	Shielded	Female Sockets, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C
LEMO FFB.1S.405.CTAC27			Push-Pull	Polytetrafluoroethylene (PTFE)	1	Brass	Silver	IP50	4 A	Free Hanging (In-Line)	Keyed	Brass	Gold	Shielded	Male Pins, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C
LEMO FFB.1S.275.CLAC52			Push-Pull					IP50		Free Hanging (In-Line)					Male Pin, Plug						-55 °C	250 °C	1000	179B, 187A, 223, 302, 400, 59B, RG-58C	Solder	Clamp	Coaxial	Silver	Brass	75 Ohms	1	Gold	Chrome	Brass	Polyetheretherketone (PEEK)
LEMO FFB.1S.250.CTAC32			Push-Pull					IP50		Free Hanging (In-Line)					Male Pin, Plug						-55 °C	250 °C	1000	174, 174A, 178B, 188A, 196A, 316B, RG-122	Solder	Clamp	Coaxial	Silver	Brass	50 Ohms		Gold	Chrome	Brass	Polytetrafluoroethylene (PTFE)
LEMO FFB.1S.405.CLAC32	2.2 mm, 3.2 mm	0.087 in, 0.126 in	Push-Pull	Polyetheretherketone (PEEK)	1	Brass	Silver	IP50	4 A	Free Hanging (In-Line)	Keyed	Brass	Gold	Shielded	Male Pins, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C														UL94 V-0
LEMO FFB.1S.405.CLAC52			Push-Pull	Polyetheretherketone (PEEK)	1	Brass	Silver	IP50	4 A	Free Hanging (In-Line)	Keyed	Brass	Gold	Shielded	Male Pins, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C														UL94 V-0	0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FFB.1S.405.CTLC42			Push-Pull	Polytetrafluoroethylene (PTFE)	1	Brass	Silver	IP50	8 A	Free Hanging (In-Line)	Keyed	Bronze	Gold	Shielded	Female Sockets, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C																		0.126 in	4.2 mm	0.165 in	3.2 mm
LEMO FFB.1S.405.CTAC52			Push-Pull	Polytetrafluoroethylene (PTFE)	1	Brass	Silver	IP50	4 A	Free Hanging (In-Line)	Keyed	Brass	Gold	Shielded	Male Pins, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C															0.165 in, 0.205 in	4.2 mm	5.2 mm
LEMO FFB.1S.405.CTAC57	5.2 mm, 5.7 mm		Push-Pull	Polytetrafluoroethylene (PTFE)	1	Brass	Silver	IP50	4 A	Free Hanging (In-Line)	Keyed	Brass	Gold	Shielded	Male Pins, Plug	Chrome	Backshell	Brass, Chrome	405	Metal	-55 °C	250 °C																						0.205 in, 0.224 in
LEMO FFB.1S.140.LC							Silver																																						Brass	1S Series Connector	Back-Nut, Collet
