FF600R12ME4CBOSA1

NRND

Infineon Technologies

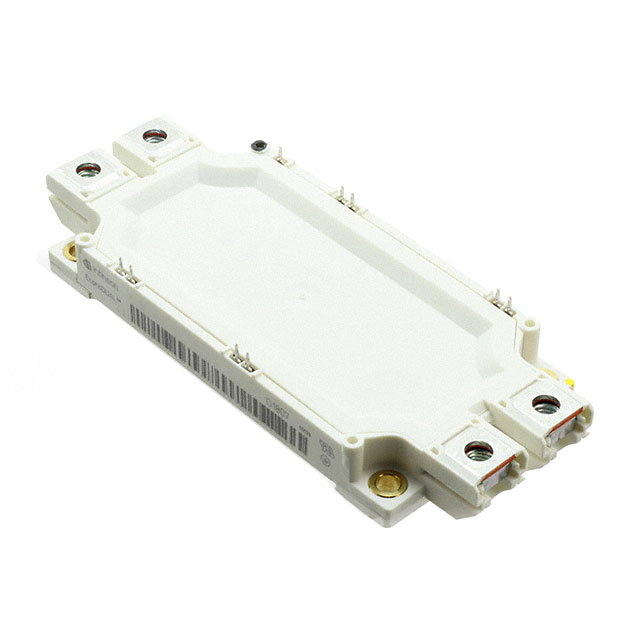

THE FF600R12ME4C IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 600 A.

Deep-Dive with AI

Search across all available documentation for this part.

FF600R12ME4CBOSA1

NRND

Infineon Technologies

THE FF600R12ME4C IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 600 A.

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FF600R12ME4CBOSA1

Configuration	Half Bridge
Current - Collector (Ic) (Max) [Max]	1060 A
Current - Collector Cutoff (Max) [Max]	3 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	37 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	4050 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FF600R12 Series

Part	Input	Input Capacitance (Cies) @ Vce	Configuration	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Package / Case	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	IGBT Type
Infineon Technologies FF600R12ME4CBOSA1	Standard	37 nF	Half Bridge	1200 V	Chassis Mount	2.1 V	Module	Module	1060 A	4050 W	3 mA	150 °C	-40 °C	Trench Field Stop
Infineon Technologies FF600R12ME4CPBPSA1	Standard	37 nF	Half Bridge Inverter	1200 V	Chassis Mount	2.1 V	AG-ECONOD	Module	1060 A	4050 W	3 mA	150 °C	-40 °C	Trench Field Stop
Infineon Technologies FF600R12ME4EB11BOSA1	Standard	37 nF	Half Bridge	1200 V	Chassis Mount	2.1 V	Module	Module	995 A	4050 W	3 mA			Trench Field Stop
Infineon Technologies FF600R12ME4PBOSA1
Infineon Technologies FF600R12ME4AB11BOSA1	Standard	37 nF	2 Independent	1200 V	Chassis Mount	2.1 V	Module	Module		3350 W	3 mA			Trench Field Stop
Infineon Technologies FF600R12ME4PB11BOSA1
Infineon Technologies FF600R12KE4PBOSA1	Standard	38 nF	2 Independent	1200 V	Chassis Mount	2.2 V	AG-62MM-1	Module	600 A		5 mA	150 °C	-40 °C	Trench Field Stop
Infineon Technologies FF600R12IS4FBOSA1	Standard	39 nF	2 Independent	1200 V	Chassis Mount	3.75 V	Module	Module	600 A	3700 W	5 mA	125 °C	-40 °C
Infineon Technologies FF600R12ME4BOSA1	Standard	37 nF	2 Independent	1200 V	Chassis Mount	2.1 V	Module	Module		4050 W	3 mA			Trench Field Stop
Infineon Technologies FF600R12IE4BOSA1	Standard	37 nF	Half Bridge	1200 V	Chassis Mount	2.05 V	Module	Module	600 A	3350 W	5 mA	150 °C	-40 °C	Trench Field Stop

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 287.60
		10	$ 269.37
		30	$ 259.25

Description

General part information

FF600R12 Series

EconoDUAL™31200 V, 600 A dualIGBT modulewith TRENCHSTOP™ IGBT4, Emitter Controlled soft diode performance and NTC. Also available as variation with PressFIT mounting technology:FF600R12ME4C_B11.
