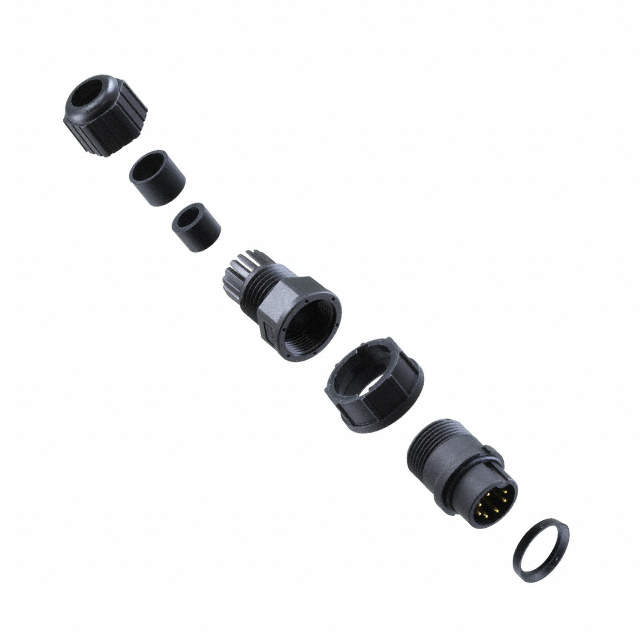

CD-07BFMA-SL7001

Active

Amphenol LTW

CONN PLUG MALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	CD-07BFMA-SL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Connector Type	Shell Size - Insert	Mounting Type	Backshell Material, Plating	Color	Primary Material	Shell Material	Current Rating (Amps)	Orientation	Features	Insert Material	Number of Positions	Shielding	Ingress Protection	Contact Material	Type	Contact Shape	Contact Type	Housing Color	Note
Amphenol LTW CD-07BFMA-SL7001	-40 °C	105 ░C	Gold	Male Pins Plug	C	Free Hanging (In-Line)	Nylon Polyamide (PA)	Black	Plastic	Glass Filled Nylon Polyamide (PA)	5 A	Keyed	Backshell Coupling Nut	Polyamide (PA) Nylon Glass Filled	7	Unshielded	IP67 - Dust Tight Waterproof	Copper Alloy
Amphenol LTW CD-07BFMA-QL8AN0	-40 °C	105 ░C		Plug Housing	C	Free Hanging (In-Line)			Plastic			Keyed	Backshell	Thermoplastic	7	Unshielded	IP68 - Dust Tight Waterproof		For Male Pins	Circular	Crimp	Black	Contacts Not Included
Amphenol LTW CD-07BFMA-QL8MN0	-40 °C	105 ░C		Plug Housing	C	Free Hanging (In-Line)			Plastic			Keyed	Backshell	Thermoplastic	7	Unshielded	IP68 - Dust Tight Waterproof		For Male Pins	Circular	Crimp	Black	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug, Male Pins Solder Cup
