C2537A.41.10

Active

Prysmian Group

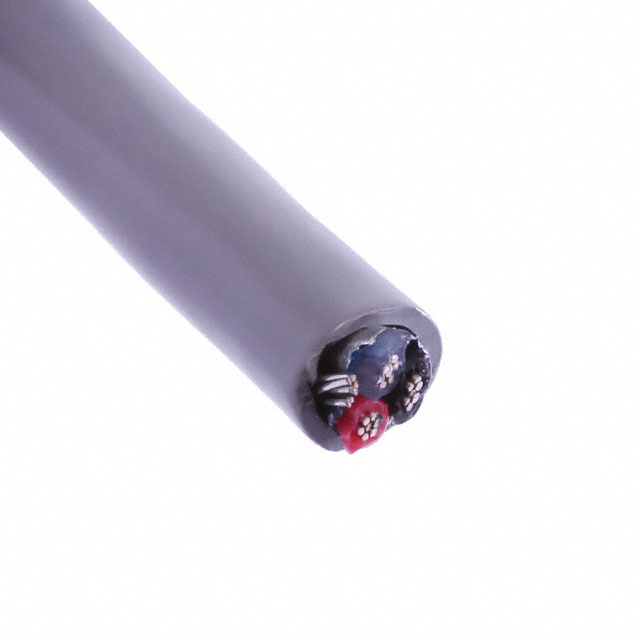

CABLE 3COND 16AWG GRAY SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 16AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C2537A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.26 mm
Jacket (Insulation) Diameter [diameter]	0.325 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Control, Communication
Voltage	600 V
Wire Gauge	16 AWG

Part	Shield Type	Length	Length	Length [x]	Length [x]	Conductor Material	Number of Conductors	Conductor Insulation	Jacket Color	Voltage	Usage	Ratings	Shield Material	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Cable Type	Shield Coverage	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Prysmian Group C2537A.41.10	Foil	1000 ft	304.8 m	30.5 m	100 ft	Copper Annealed Tinned	3	Polyethylene (PE)	Gray	600 V	Communication Control	ASTM B-33	Flexfoil®	Poly-Vinyl Chloride (PVC)	19	0.0117 in	16 AWG	Multi-Conductor	100 %	Drain Wire	8.26 mm	0.325 in
Prysmian Group C2537A.38.10	Foil			152.4 m	500 '	Copper Annealed Tinned	3	Polyethylene (PE)	Gray	600 V	Communication Control	ASTM B-33	Flexfoil®	Poly-Vinyl Chloride (PVC)	19	0.0117 in	16 AWG	Multi-Conductor	100 %	Drain Wire	8.26 mm	0.325 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 16 AWG Foil 1000.0' (304.8m)
