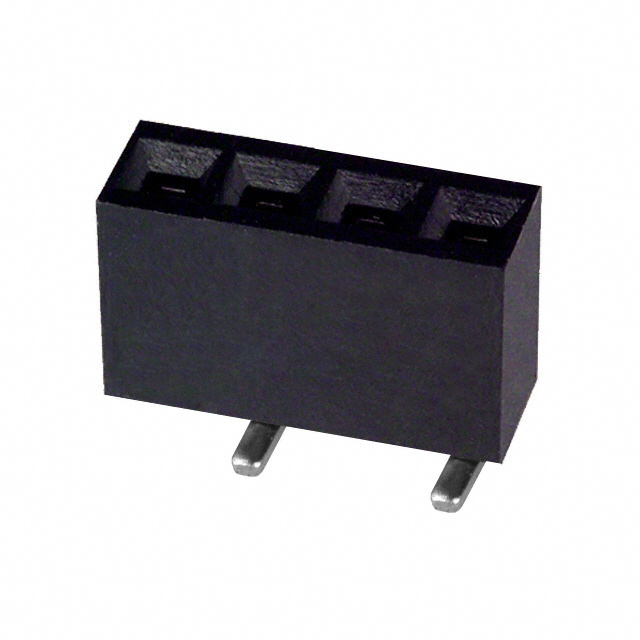

NPTC041KFXC-RC

Active

Sullins Connector Solutions

BOARD CONNECTOR, 4 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING

Search across all available documentation for this part.

Active

Sullins Connector Solutions

BOARD CONNECTOR, 4 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING

Technical Specifications

Parameters and characteristics for this part

Specification	NPTC041KFXC-RC

Connector Type	Header, Top or Bottom Entry
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.28 in
Insulation Height	7.1 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Insulation Color	Mounting Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Material	Current Rating (Amps)	Contact Material	Number of Rows	Termination	Material Flammability Rating	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Type
Sullins Connector Solutions NPTC041KFXC-RC	250 VDC	Black	Surface Mount	Square	-40 °C	105 ░C	4	Header Top or Bottom Entry	Tin	0.28 in	7.1 mm	All	Nylon 6T Polyamide (PA6T)	3 A	Phosphor Bronze	1	Solder	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Tin
