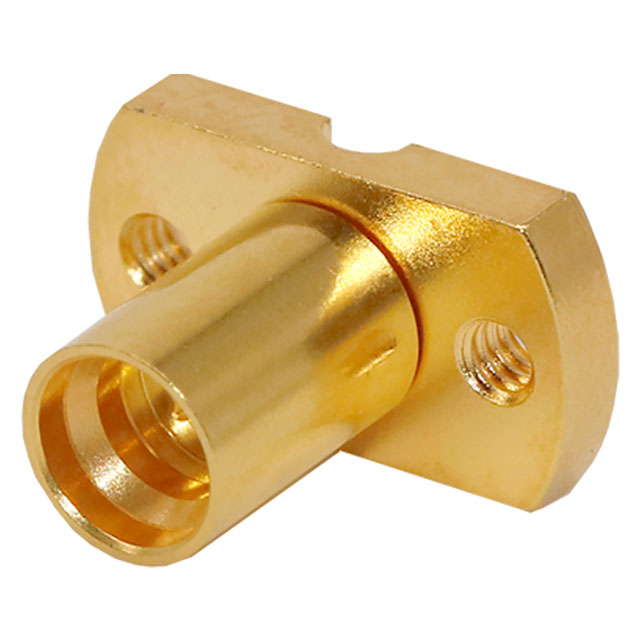

127-0701-631

Active

Cinch Connectivity Solutions Johnson

SMP COMPRESSION CONNECTOR, MICRO

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMP COMPRESSION CONNECTOR, MICRO

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	127-0701-631	127-0701 Series

Body Finish	Gold	Gold
Body Material	Beryllium Copper, Brass	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Type	Male Pin, Jack	Male Pin, Jack, Plug
Contact Termination	-	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Features	Full Detent	Full Detent
Frequency - Max [Max]	40 GHz	18 - 40 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mounting Feature	Flange	Flange
Mounting Type	Surface Mount	Surface Mount
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Compression	Compression, Solder
Voltage Rating	335 V	325 - 335 V

SMP COMPRESSION CONNECTOR, STRIP

Part	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Dielectric Material	Housing Color	Center Contact Plating	Connector Type	Body Finish	Mounting Type	Shield Termination	Voltage Rating	Center Contact Material	Impedance	Frequency - Max [Max]	Body Material	Features	Fastening Type	Contact Termination
Cinch Connectivity Solutions Johnson 127-0701-641	1	-65 ░C	165 °C	Flange	Polytetrafluoroethylene (PTFE)	Gold	Gold	Jack, Male Pin	Gold	Surface Mount	Compression	335 V	Beryllium Copper	50 Ohms	40 GHz	Beryllium Copper, Brass	Full Detent	Snap-On
Cinch Connectivity Solutions Johnson 127-0701-221	1	-65 ░C	165 °C		Polytetrafluoroethylene (PTFE)	Gold	Gold	Male Pin, Plug	Gold	Surface Mount	Solder	325 V	Beryllium Copper	50 Ohms	18 GHz	Beryllium Copper	Full Detent	Snap-On	Solder
Cinch Connectivity Solutions Johnson 127-0701-631	1	-65 ░C	165 °C	Flange	Polytetrafluoroethylene (PTFE)	Gold	Gold	Jack, Male Pin	Gold	Surface Mount	Compression	335 V	Beryllium Copper	50 Ohms	40 GHz	Beryllium Copper, Brass	Full Detent	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 18.81

General part information

SMP Connector Jack, Male Pin 50 Ohms Surface Mount
