1050859-1
ActiveTE Connectivity AMP Connectors

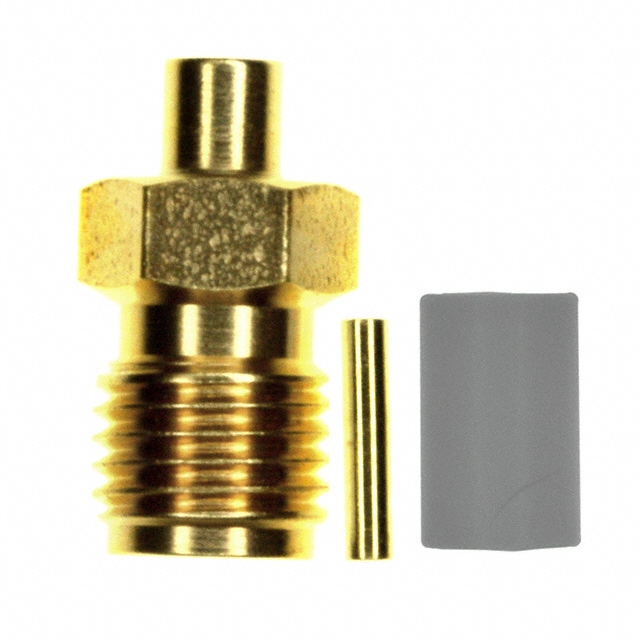

CONN SMA JACK STR 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1050859-1
ActiveTE Connectivity AMP Connectors
CONN SMA JACK STR 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1050859-1 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | RG-405 (.085" Semi Rigid) |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Insertion Loss | 0.3 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.92 | |
| 10 | $ 8.65 | |||
| 100 | $ 7.69 | |||
| 1000 | $ 6.42 | |||
1050859 Series
CONN SMA JACK STR 50 OHM SOLDER
| Part | Voltage Rating | Center Contact Plating | Shield Termination | Mounting Type | Frequency - Max [Max] | Impedance | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Insertion Loss | Mating Cycles | Number of Ports | Body Material | Contact Termination | Center Contact Material | Housing Color | Cable Group | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1050859-1 | 335 V | Gold | Solder | Free Hanging (In-Line) | 18 GHz | 50 Ohms | Polytetrafluoroethylene (PTFE) | -65 ░C | 105 ░C | Gold | 0.3 dB | 500 | 1 | Stainless Steel | Solder | Beryllium Copper | Gold | RG-405 (.085" Semi Rigid) | Female Socket, Jack | SMA |
Description
General part information
1050859 Series
SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
