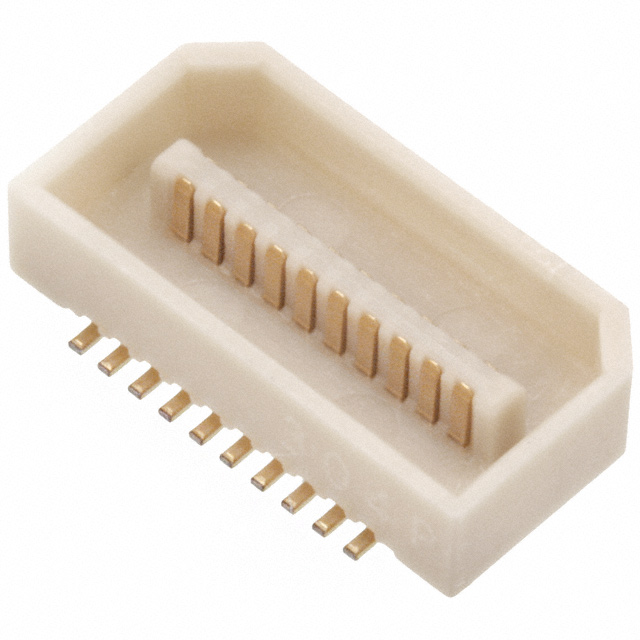

AXN420330S

Obsolete

Panasonic Electric Works

CONN HDR 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXN420330S

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board [z]	2.72 mm
Height Above Board [z]	0.107 in
Mated Stacking Heights	6 mm, 3.5 mm, 3 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Features	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Connector Type	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Contact Finish	Height Above Board	Height Above Board
Panasonic Electric Works AXN420330P	Board Guide	0.8 mm	0.031 in	Surface Mount	2	Header Outer Shroud Contacts	20	3 mm 3.5 mm 6 mm	2.72 mm	0.107 in	Gold
Panasonic Electric Works AXN420330S	Board Guide	0.8 mm	0.031 in	Surface Mount	2	Header Outer Shroud Contacts	20	3 mm 3.5 mm 6 mm	2.72 mm	0.107 in	Gold
Panasonic Electric Works AXN420030S	Board Guide	0.8 mm	0.031 in	Surface Mount	2	Header Outer Shroud Contacts	20	13 mm	10.14 mm	0.399 in	Gold
Panasonic Electric Works AXN420530S	Board Guide	0.8 mm	0.031 in	Surface Mount	2	Header Outer Shroud Contacts	20	5 mm 5.5 mm 8 mm			Gold	4.72 mm	0.186 "
Panasonic Electric Works AXN420C430P	Board Guide	0.8 mm	0.031 in	Surface Mount	2	Header Outer Shroud Contacts	20	4 mm 4.5 mm 7 mm			Gold	3.7 mm	0.146 in
