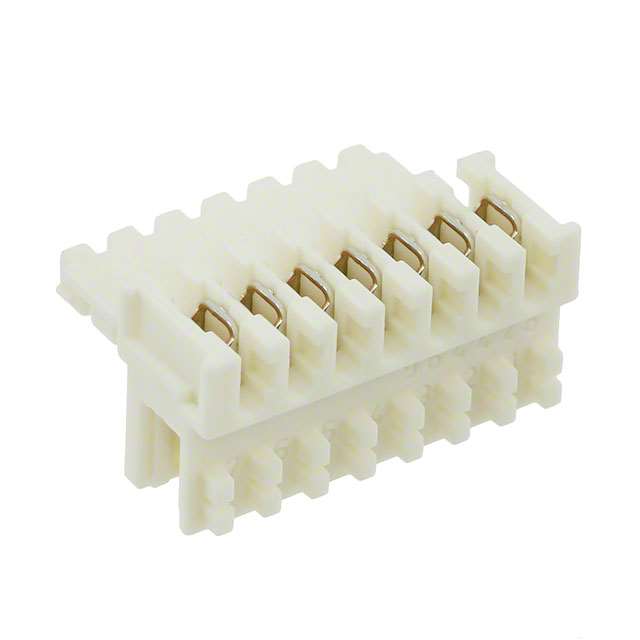

1-966194-7
ActiveTE Connectivity AMP Connectors
CONN RCPT 7POS IDC 22-24AWG TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-966194-7 | 966194 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Tin | Tin |
| Contact Type | Female Socket | Female Socket |
| Features | Mates to PCB | Mates to PCB |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 7 | 4 - 7 |
| Number of Rows | 1 | 1 - 2 |
| Pitch [x] | 0.098 in | 0.098 in |
| Pitch [x] | 2.5 mm | 2.5 mm |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
| Wire Type | Discrete | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
966194 Series
10X6P FEDERLEIS 2,5
| Part | Contact Type | Cable Termination | Contact Finish | Number of Positions | Wire Type | Color | Number of Rows | Connector Type | Mounting Type | Pitch [x] | Pitch [x] | Wire Gauge [Max] | Wire Gauge [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-966194-6 | Female Socket | IDC | Tin | 6 | Discrete | Natural | 2 | Receptacle | Free Hanging (In-Line) | |||||
TE Connectivity AMP Connectors 1-966194-7 | Female Socket | IDC | Tin | 7 | Discrete | Natural | 1 | Receptacle | Free Hanging (In-Line) | 0.098 in | 2.5 mm | 24 AWG | 22 AWG | Mates to PCB |
TE Connectivity AMP Connectors 1-966194-4 | Female Socket | IDC | Tin | 4 | Discrete | Natural | 2 | Receptacle | Free Hanging (In-Line) |
Description
General part information
966194 Series
7 Position Rectangular Receptacle Connector IDC Tin 22-24 AWG
