345-128-523-558
ActiveEDAC Inc.

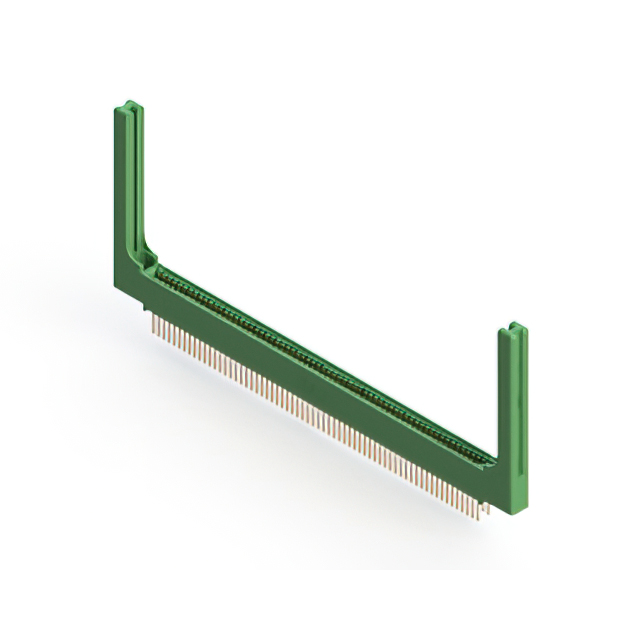

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 128 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-128-523-558
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 128 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-128-523-558 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 128 |
| Number of Positions/Bay/Row [custom] | 64 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-128 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Number of Rows | Contact Type | Contact Finish | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Termination Rows | Color | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Card Type | Mounting Type | Contact Material | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Dual | 2 | Cantilever | Gold | 64 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Female | 2 | Green | Wire Wrap | 10 Áin | 0.25 Ám | 128 | Non Specified - Dual Edge | Through Hole | Copper Alloy | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Dual | 2 | Cantilever | Gold | 64 | 4-40 Threaded Insert Top Mount Opening | Female | 2 | Green | Solder | 10 Áin | 0.25 Ám | 128 | Non Specified - Dual Edge | Board Edge Straddle Mount | Copper Alloy | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Dual | 2 | Cantilever | Gold | 64 | 4-40 Flush Mount Threaded Insert Top Opening | Female | 2 | Green | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 128 | Non Specified - Dual Edge | Through Hole | Copper Alloy | Card Guides | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Dual | 2 | Cantilever | Gold | 64 | Female | 2 | Green | Wire Wrap | 10 Áin | 0.25 Ám | 128 | Non Specified - Dual Edge | Through Hole | Copper Alloy | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Dual | 2 | Cantilever | Gold | 64 | Side Mount Opening Unthreaded | Female | 2 | Green | Wire Wrap | 10 Áin | 0.25 Ám | 128 | Non Specified - Dual Edge | Through Hole | Copper Alloy | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Dual | 2 | Cantilever | Gold | 64 | Female | 2 | Green | Solder | 10 Áin | 0.25 Ám | 128 | Non Specified - Dual Edge | Through Hole | Copper Alloy | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Dual | 2 | Cantilever | Gold | 64 | Side Mount Opening Unthreaded | Female | 2 | Green | Solder | 10 Áin | 0.25 Ám | 128 | Non Specified - Dual Edge | Through Hole | Copper Alloy | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Dual | 2 | Cantilever | Gold | 64 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Female | 2 | Green | Wire Wrap | 10 Áin | 0.25 Ám | 128 | Non Specified - Dual Edge | Through Hole | Copper Alloy | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Dual | 2 | Cantilever | Gold | 64 | M3 Threaded Insert Top Mount Opening | Female | 2 | Green | Solder | 10 Áin | 0.25 Ám | 128 | Non Specified - Dual Edge | Board Edge Straddle Mount | Copper Alloy | Card Extender | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2.54 mm | 0.1 in | -40 °C | 105 ░C | Dual | 2 | Cantilever | Gold | 64 | 4-40 Threaded Insert Top Mount Opening | Female | 2 | Green | Solder | 10 Áin | 0.25 Ám | 128 | Non Specified - Dual Edge | Through Hole | Copper Alloy | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-128 Series
128 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
