GR67M50A

Active

Essentra Access Solutions

GROMMET, CLOSED / HOLEPLUG, 26 MM, 34 MM, EPDM RUBBER (ETHYLENE PROPYLENE DIENE MONOMER RUBBER)

Search across all available documentation for this part.

Active

Essentra Access Solutions

GROMMET, CLOSED / HOLEPLUG, 26 MM, 34 MM, EPDM RUBBER (ETHYLENE PROPYLENE DIENE MONOMER RUBBER)

Technical Specifications

Parameters and characteristics for this part

Specification	GR67M50A

Bushing, Grommet Type	Grommet
Color	Gray
Features	IP67 - Dust Tight, Waterproof
For Use With/Related Products	Wires, Cable
Material	Ethylene Propylene Terpolymer Rubber (EPDM)
Panel Cutout Dimensions [diameter]	1.99 in
Panel Cutout Dimensions [diameter]	50.5 mm
Panel Thickness [Max]	3.99 mm
Panel Thickness [Max]	0.157 in
Panel Thickness [Min]	0.039 in
Panel Thickness [Min]	0.99 mm

Part	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	For Use With/Related Products	Material	Features	Bushing, Grommet Type	Color	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Cutout Dimensions [diameter]	Panel Thickness [Max]
Essentra Access Solutions GR67M32A	32.5 mm	1.28 in	Cable Wires	Ethylene Propylene Terpolymer Rubber (EPDM)	IP67 - Dust Tight Waterproof	Grommet	Gray	0.039 in	3.99 mm	0.157 in	0.99 mm
Essentra Access Solutions GR67M50A		50.5 mm	Cable Wires	Ethylene Propylene Terpolymer Rubber (EPDM)	IP67 - Dust Tight Waterproof	Grommet	Gray	0.039 in	3.99 mm	0.157 in	0.99 mm	1.99 in
Essentra Access Solutions GR67M25A		25.4 mm	Cable Wires	Ethylene Propylene Terpolymer Rubber (EPDM)	IP67 - Dust Tight Waterproof	Grommet	Gray	0.059 in		0.157 in	1.5 mm	1 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

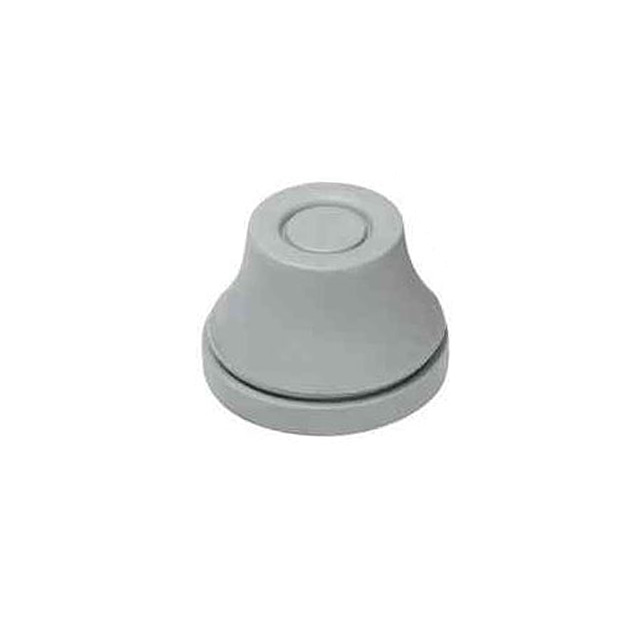

Circular - 1.990" (50.50mm) Grommet Gray

Technical documentation and resources
