SL-124-G-10

Active

Samtec Inc.

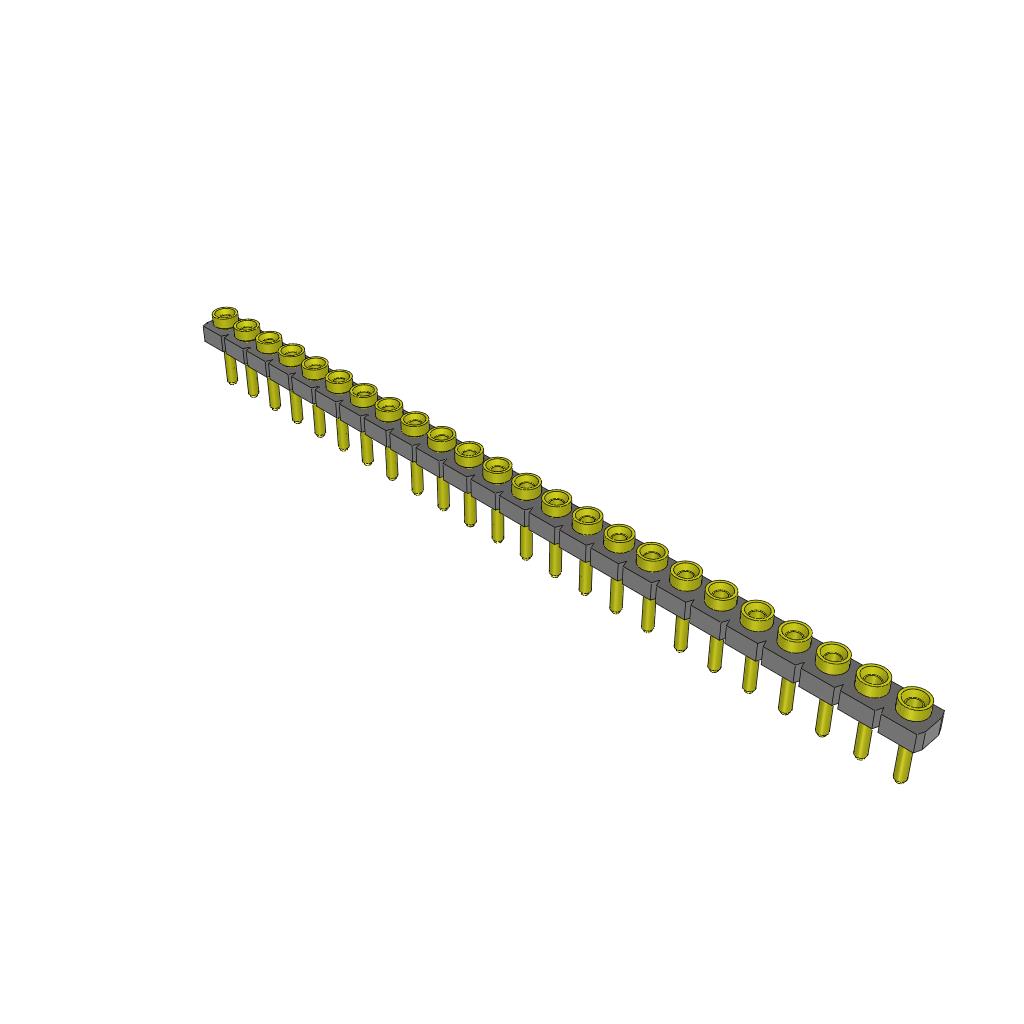

CONN RCPT .100" 24POS GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SL Datasheet

SL-124-G-10

Active

Samtec Inc.

CONN RCPT .100" 24POS GOLD PCB

Deep-Dive with AI

DocumentsDatasheet SL Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SL-124-G-10

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	0.108 in
Contact Length - Post	2.75 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.1 mm
Insulation Height	0.122 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

SL-124 Series

Part	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Mounting Type	Number of Positions	Insulation Height	Insulation Height	Number of Positions Loaded	Number of Rows	Fastening Type	Connector Type	Contact Material	Termination	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. SL-124-TT-11	0.1 in	2.54 mm	Black	105 ░C	-55 °C	Female Socket	Liquid Crystal Polymer (LCP)	0.108 in	2.75 mm	Tin	Through Hole	24	0.132 in	3.35 mm	All	1	Push-Pull	Receptacle	Beryllium Copper	Solder	Circular
Samtec Inc. SL-124-T-12	0.1 in	2.54 mm	Black	125 °C	-55 °C	Female Socket	Liquid Crystal Polymer (LCP)				Through Hole	24			All	1	Push-Pull	Receptacle	Beryllium Copper	Solder	Circular	Gold	30 Áin	0.76 Ám	2.41 mm	0.095 in	0.095 in	2.41 mm
Samtec Inc. SL-124-G-10	0.1 in	2.54 mm	Black	125 °C	-55 °C	Female Socket	Liquid Crystal Polymer (LCP)	0.108 in	2.75 mm	Gold	Through Hole	24	0.122 in	3.1 mm	All	1	Push-Pull	Receptacle	Beryllium Copper	Solder	Circular	Gold	30 Áin	0.76 Ám					10 çin	0.25 çm
Samtec Inc. SL-124-T-31	0.1 in	2.54 mm	Black	125 °C	-55 °C	Female Socket	Liquid Crystal Polymer (LCP)				Through Hole	24	0.05 in	1.27 mm	All	1	Push-Pull	Receptacle	Beryllium Copper	Solder	Circular	Gold	30 Áin	0.76 Ám
Samtec Inc. SL-124-T-30	0.1 in	2.54 mm	Black	125 °C	-55 °C	Female Socket	Liquid Crystal Polymer (LCP)				Through Hole	24	0.05 in	1.27 mm	All	1	Push-Pull	Receptacle	Beryllium Copper	Solder	Circular	Gold	30 Áin	0.76 Ám
Samtec Inc. SL-124-TT-10	0.1 in	2.54 mm	Black	105 ░C	-55 °C	Female Socket	Liquid Crystal Polymer (LCP)	0.108 in	2.75 mm	Tin	Through Hole	24	0.122 in	3.1 mm	All	1	Push-Pull	Receptacle	Beryllium Copper	Solder	Circular
Samtec Inc. SL-124-T-11	0.1 in	2.54 mm	Black	125 °C	-55 °C	Female Socket	Liquid Crystal Polymer (LCP)	0.108 in	2.75 mm		Through Hole	24	0.132 in	3.35 mm	All	1	Push-Pull	Receptacle	Beryllium Copper	Solder	Circular	Gold	30 Áin	0.76 Ám
Samtec Inc. SL-124-G-31	0.1 in	2.54 mm	Black	125 °C	-55 °C	Female Socket	Liquid Crystal Polymer (LCP)			Gold	Through Hole	24	0.05 in	1.27 mm	All	1	Push-Pull	Receptacle	Beryllium Copper	Solder	Circular	Gold	30 Áin	0.76 Ám					10 çin	0.25 çm
Samtec Inc. SL-124-T-32	0.1 in	2.54 mm	Black	125 °C	-55 °C	Female Socket	Liquid Crystal Polymer (LCP)				Through Hole	24	0.05 in	1.27 mm	All	1	Push-Pull	Receptacle	Beryllium Copper	Solder	Circular	Gold	30 Áin	0.76 Ám
