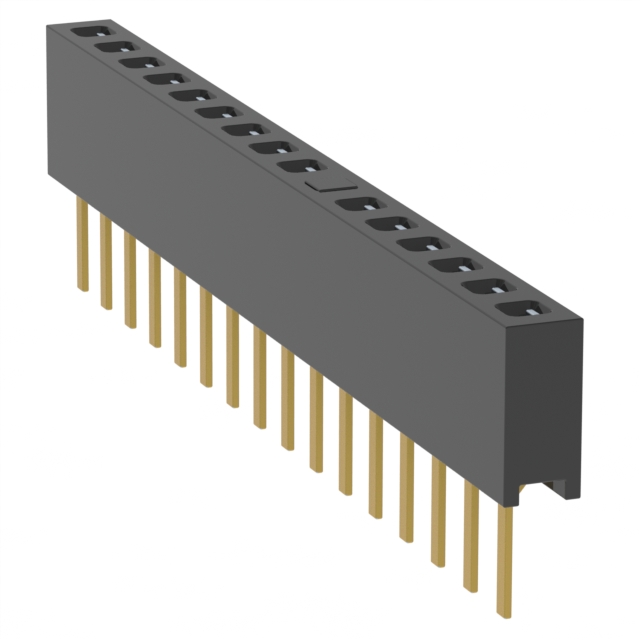

MMS-116-01-L-SV-07

Active

Samtec Inc.

CONN RCPT 16POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

MMS-116-01-L-SV-07

Active

Samtec Inc.

CONN RCPT 16POS 0.079 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMS-116-01-L-SV-07

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.45 mm
Insulation Height	0.175 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	15
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder

MMS-116 Series

Part	Current Rating (Amps)	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Color	Fastening Type	Insulation Height	Insulation Height	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Style	Insulation Material	Termination	Contact Finish - Post	Contact Type	Contact Finish - Mating	Connector Type	Number of Positions Loaded	Features	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. MMS-116-01-LM-DV	3.9 A	2	-55 °C	125 °C	Through Hole	Black	Push-Pull	4.45 mm	0.175 in	Square	10 çin	0.25 çm	2.92 mm	0.115 in	0.079 in	2 mm	0.079 in	2 mm	Phosphor Bronze	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	Tin	Female Socket	Gold	Receptacle	All
Samtec Inc. MMS-116-02-S-DV-A-P-TR	3.9 A	2	-55 °C	125 °C	Surface Mount	Black	Push-Pull	4.5 mm	0.177 in	Square	30 Áin	0.76 Ám			0.079 in	2 mm	0.079 in	2 mm	Phosphor Bronze	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	Tin	Female Socket	Gold	Receptacle	All	Board Guide Pick and Place
Samtec Inc. MMS-116-02-L-DH	3.9 A	2	-55 °C	125 °C	Surface Mount Right Angle	Black	Push-Pull			Square	10 çin	0.25 çm			0.079 in	2 mm	0.079 in	2 mm	Phosphor Bronze	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	Tin	Female Socket	Gold	Receptacle	All		0.157 in	4 mm
Samtec Inc. MMS-116-02-L-DV-M-TR	3.9 A	2	-55 °C	125 °C	Surface Mount	Black	Push-Pull	4.5 mm	0.177 in	Square	10 çin	0.25 çm			0.079 in	2 mm	0.079 in	2 mm	Phosphor Bronze	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	Tin	Female Socket	Gold	Receptacle	All	Pick and Place
Samtec Inc. MMS-116-01-L-SV-07	3.9 A	1	-55 °C	125 °C	Through Hole	Black	Push-Pull	4.45 mm	0.175 in	Square	10 çin	0.25 çm	2.92 mm	0.115 in			0.079 in	2 mm	Phosphor Bronze	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	Tin	Female Socket	Gold	Receptacle					16	15
Samtec Inc. MMS-116-02-L-SH-LC	3.9 A	1	-55 °C	125 °C	Surface Mount Right Angle	Black	Push-Pull	2.15 mm	0.085 "	Square	10 çin	0.25 çm					0.079 in	2 mm	Phosphor Bronze	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	Tin	Female Socket	Gold	Receptacle	All				16
Samtec Inc. MMS-116-01-SM-DV	3.9 A	2	-55 °C	125 °C	Through Hole	Black	Push-Pull	4.45 mm	0.175 in	Square	30 Áin	0.76 Ám	2.92 mm	0.115 in	0.079 in	2 mm	0.079 in	2 mm	Phosphor Bronze	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	Tin	Female Socket	Gold	Receptacle	All
Samtec Inc. MMS-116-01-L-SH	3.9 A	1	-55 °C	125 °C	Through Hole Right Angle	Black	Push-Pull	2 mm	0.079 in	Square	10 çin	0.25 çm					0.079 in	2 mm	Phosphor Bronze	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	Tin	Female Socket	Gold	Receptacle	All				16		0.12 in	3.05 mm
Samtec Inc. MMS-116-01-L-SV-10	3.9 A	1	-55 °C	125 °C	Through Hole	Black	Push-Pull	4.45 mm	0.175 in	Square	10 çin	0.25 çm	2.92 mm	0.115 in			0.079 in	2 mm	Phosphor Bronze	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	Tin	Female Socket	Gold	Receptacle					16	15
Samtec Inc. MMS-116-01-T-SV	3.9 A	1	-55 °C	105 ░C	Through Hole	Black	Push-Pull	4.45 mm	0.175 in	Square			2.92 mm	0.115 in			0.079 in	2 mm	Phosphor Bronze	Board to Board Cable	Liquid Crystal Polymer (LCP)	Solder	Tin	Female Socket		Receptacle	All				16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MMS-116 Series

16 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
