1410968-3

Active

TE Connectivity AMP Connectors

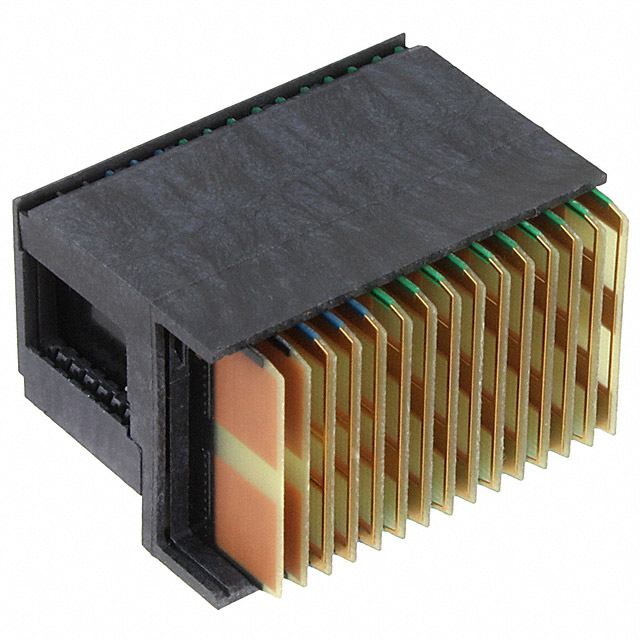

CONN PLUG VITA46 112POS EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG VITA46 112POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1410968-3

Color	Black
Connector Style	VITA 46, Center
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Layout, Typical [custom]	20
Contact Layout, Typical [custom]	38
Contact Layout, Typical [custom]	20
Contact Layout, Typical [custom]	2
Contact Layout, Typical [custom]	12
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	16
Number of Positions	112
Number of Positions Loaded	105
Number of Rows	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit
Voltage Rating	50 V

CONN PLUG VITA46 112POS EDGE MNT

Part	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Connector Type	Number of Rows	Features	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Connector Style	Connector Usage	Termination	Pitch [x]	Pitch [x]	Number of Columns	Color	Contact Finish	Number of Positions	Mounting Type	Number of Positions Loaded	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 1410968-3	50 µin	1.27 µm	UL94 V-0	Plug, Male Blades	7	Board Guide	20	38	20	2	12	Center, VITA 46	Daughtercard	Press-Fit	0.071 in	1.8 mm	16	Black	Gold	112	Board Edge, Right Angle, Through Hole	105	50 V	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

112 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Center
