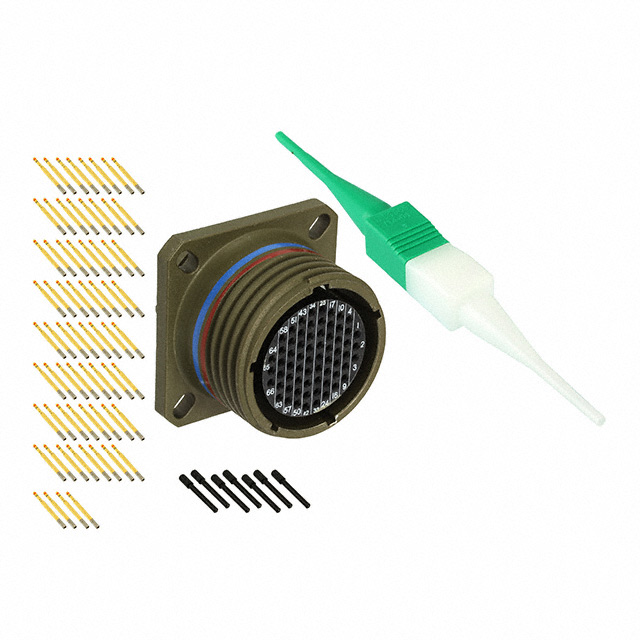

D38999/20JF35SN

Active

ITT Cannon, LLC

CONN RCPT FMALE 66POS GOLD CRIMP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT FMALE 66POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20JF35SN

Applications	Aviation, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	66
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Shell Finish	Olive Drab Cadmium
Shell Material	Composite
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	19
Termination	Crimp

Part	Contact Finish - Mating	Orientation	Shell Finish	Applications	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Number of Positions	Mounting Feature	Shell Material	Termination	Color	Contact Material	Ingress Protection	Connector Type
ITT Cannon, LLC D38999/20JF35SN	Gold	N	Olive Drab Cadmium	Aviation Marine Military	19	35	-65 ░C	347 °F	1.27 µm	50 µin	Composite	66	Flange	Composite	Crimp	Olive Drab	Copper Alloy	Environment Resistant	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

66 Position Circular Connector Receptacle, Female Sockets Crimp

Technical documentation and resources

No documents available
