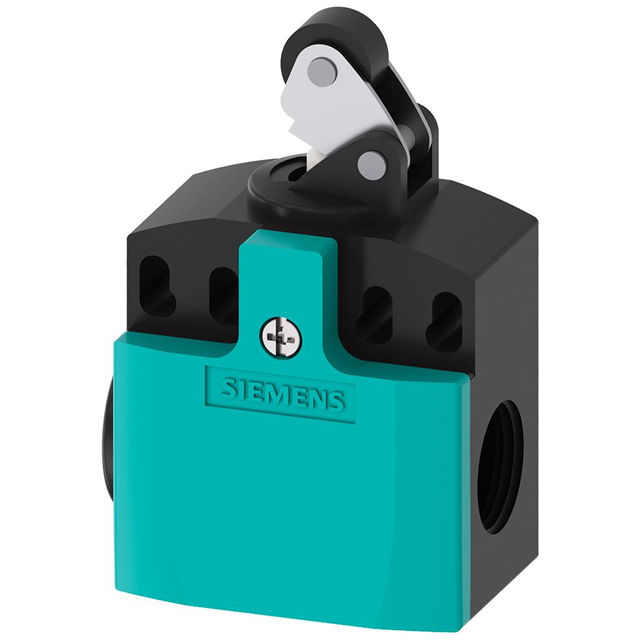

3SE52420LE10

Active

Siemens

SWITCH LIMIT 3PST 6A 120V

Search across all available documentation for this part.

Active

Siemens

SWITCH LIMIT 3PST 6A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Operating Force	Mechanical Life	Ingress Protection	Termination Style	Switch Function	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Voltage Rating - AC	Mounting Type	Current Rating (Amps)	Electrical Life
Siemens 3SE52420FC05	Round (Pin Plunger)	2039 gf	15000000 Cycles	IP66/IP67	Screw Terminal	Off-Mom On-Mom	DPST-NO/NC	-25 °C	85 °C	24 V	120 V	Chassis Mount	3 A 6 A	100000 Cycles
Siemens 3SE52420PC05	Round (Pin Plunger)	2039 gf	15000000 Cycles	IP66/IP67	Screw Terminal	Off-Mom On-Mom	3PST-2NO/1NC	-25 °C	85 °C	24 V	120 V	Chassis Mount	3 A 6 A	100000 Cycles
Siemens 3SE52423LC05	Round (Pin Plunger)	2039 gf	15000000 Cycles	IP66/IP67	Screw Terminal	Off-Mom On-Mom	3PST-2NC/1NO	-25 °C	60 °C		230 V	Chassis Mount	6 A	100000 Cycles
Siemens 3SE52420LE10	Top Rotary Roller	1020 gf	15000000 Cycles	IP66/IP67	Screw Terminal	Off-Mom On-Mom	3PST-2NC/1NO	-25 °C	85 °C	24 V	120 V	Chassis Mount	3 A 6 A	100000 Cycles
Siemens 3SE52420LK21	Roller Side Rotary		15000000 Cycles	IP66/IP67	Screw Terminal	Off-Mom On-Mom	3PST-2NC/1NO	-25 °C	85 °C	24 V	120 V	Chassis Mount	3 A 6 A	100000 Cycles
Siemens 3SE52420MC05	Round (Pin Plunger)	2039 gf	15000000 Cycles	IP66/IP67	Screw Terminal	Off-Mom On-Mom	3PST-2NC/1NO	-25 °C	85 °C	24 V	120 V	Chassis Mount	3 A 6 A	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 140.28
