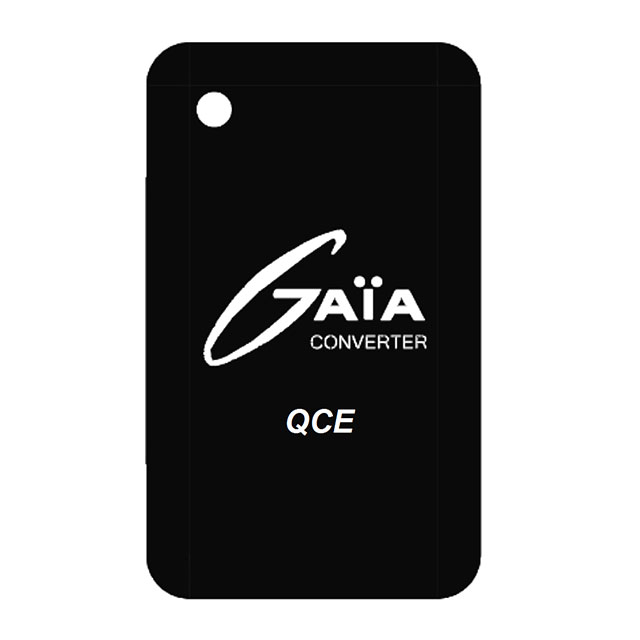

MGDSK04QC

Active

Gaia Converter

DC DC CONVERTER

Search across all available documentation for this part.

Active

Gaia Converter

DC DC CONVERTER

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER

Part	Voltage - Isolation	Applications	Power (Watts)	Mounting Type	Package / Case	Number of Outputs	Type	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Voltage - Output 1	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]
Gaia Converter MGDSK04QE	1.5 kV	ITE (Commercial)	4 W	Through Hole	24-DIP Module, 8 Leads	1	Isolated Module	330 mA	0.79 "	33 mm	20 mm	7.8 mm	0.31 in	1.3 "	36 V	12 V	80 %	-40 °C	203 °F	140 V
Gaia Converter MGDSK04QC	1.5 kV	ITE (Commercial)	4 W	Through Hole	24-DIP Module, 8 Leads	1	Isolated Module		0.79 "	33 mm	20 mm	7.8 mm	0.31 in	1.3 "	36 V	5 V	80 %	-40 °C	203 °F	140 V	800 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 800mA 36V - 140V Input

Technical documentation and resources

No documents available
