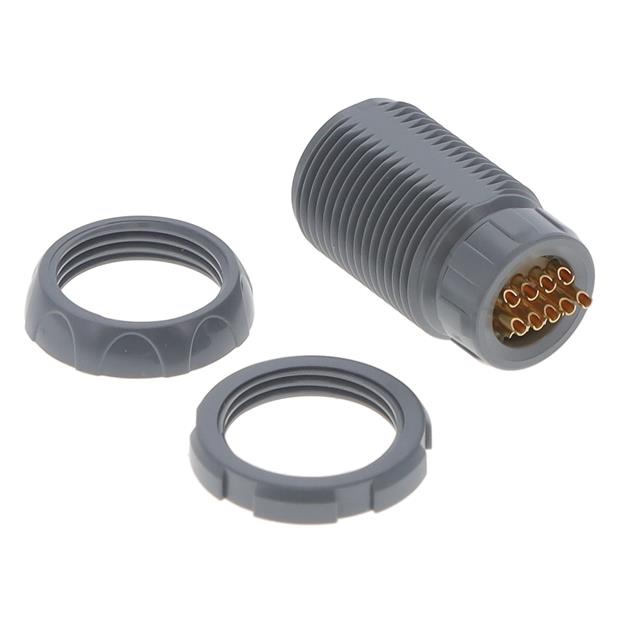

SKN.M13.GLLG

Active

LEMO

CONN RCPT FMALE 13P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SKN.M13.GLLG

Active

LEMO

CONN RCPT FMALE 13P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SKN.M13.GLLG	SKN.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray	Gray, White, Black, Blue
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	4 A	2.5 - 4.2 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	-	Through Hole, Right Angle, Panel Mount
Number of Positions	13	10 - 18
Number of Positions	-	16
Operating Temperature [Max]	170 °C	170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	N	N
Primary Material	Plastic	Plastic
Shell Material	Sulfone	Sulfone
Shell Size - Insert	M13	M13, M18, M16, M10
Shielding	Unshielded	Unshielded
Termination	-	Crimp, Solder

SKN.M1 Series

CONN RCPT FMALE 13POS GOLD CRIMP

Part	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Termination	Shell Material	Number of Positions	Current Rating (Amps)	Fastening Type	Orientation	Color	Shielding	Ingress Protection	Applications	Insert Material	Shell Size - Insert	Primary Material	Mounting Feature	Mounting Type	Number of Positions
LEMO SKN.M13.GLMG	Gold	-50 °C	170 °C	Receptacle, Female Sockets	Crimp	Sulfone	13	4 A	Push-Pull	N	Gray	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetheretherketone (PEEK)	M13	Plastic	Front and Rear Side Nut
LEMO SKN.M18.GLLG	Gold	-50 °C	170 °C	Receptacle, Female Sockets		Sulfone	18	2.5 A	Push-Pull	N	Gray	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetheretherketone (PEEK)	M18	Plastic	Front and Rear Side Nut
LEMO SKN.M13.BLLB	Gold	-50 °C	170 °C	Receptacle, Female Sockets		Sulfone	13	4 A	Push-Pull	N	White	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetheretherketone (PEEK)	M13	Plastic	Front and Rear Side Nut
LEMO SKN.M13.GLVG	Gold	-50 °C	170 °C	Receptacle, Female Sockets	Solder	Sulfone	13	4 A	Push-Pull	N	Gray	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetheretherketone (PEEK)	M13	Plastic	Front and Rear Side Nut	Panel Mount, Right Angle, Through Hole
LEMO SKN.M16.NLLN	Gold	-50 °C	170 °C	Receptacle, Female Sockets		Sulfone		3 A	Push-Pull	N	Black	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetheretherketone (PEEK)	M16	Plastic	Front and Rear Side Nut		16
LEMO SKN.M13.GLLG	Gold	-50 °C	170 °C	Receptacle, Female Sockets		Sulfone	13	4 A	Push-Pull	N	Gray	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetheretherketone (PEEK)	M13	Plastic	Front and Rear Side Nut
LEMO SKN.M10.GLVA	Gold	-50 °C	170 °C	Receptacle, Female Sockets	Solder	Sulfone	10	4.2 A	Push-Pull	N	Blue, Gray	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetheretherketone (PEEK)	M10	Plastic	Front and Rear Side Nut	Panel Mount, Right Angle, Through Hole
LEMO SKN.M13.GLNG	Gold	-50 °C	170 °C	Receptacle, Female Sockets	Solder	Sulfone	13	4 A	Push-Pull	N	Gray	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetheretherketone (PEEK)	M13	Plastic	Front and Rear Side Nut	Panel Mount, Through Hole
LEMO SKN.M10.GLNG	Gold	-50 °C	170 °C	Receptacle, Female Sockets	Solder	Sulfone	10	4.2 A	Push-Pull	N	Gray	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetheretherketone (PEEK)	M10	Plastic	Front and Rear Side Nut	Panel Mount, Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.42
		10	$ 31.89
		25	$ 30.51
		50	$ 29.53
		100	$ 28.54
		250	$ 26.97

Description

General part information

SKN.M1 Series

13 Position Circular Connector Receptacle, Female Sockets Solder Cup
