4-794631-0

Active

TE Connectivity AMP Connectors

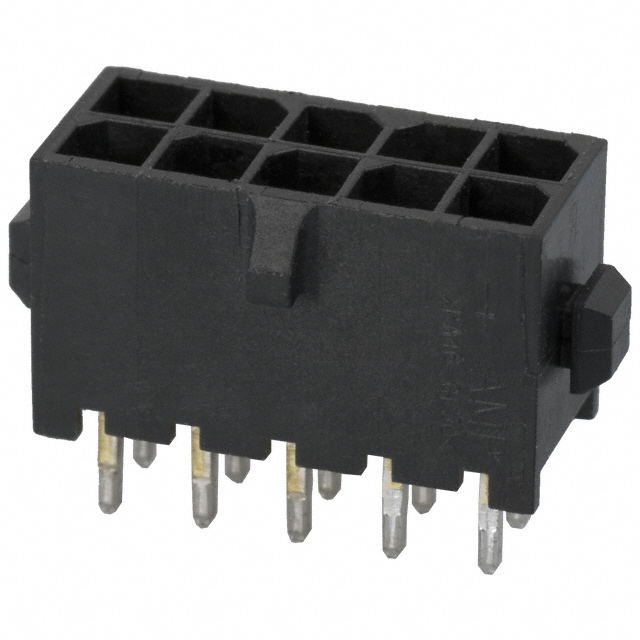

CONN HEADER VERT 10POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4-794631-0

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 10POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-794631-0	794631 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold or Gold-Palladium	Gold, Gold or Gold-Palladium
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	9.25 mm	9.25 mm
Insulation Height	0.364 in	0.364 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	10	2 - 24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder, Press-Fit	Solder, Press-Fit
Voltage Rating	250 VDC	250 VDC

794631 Series

CONN HEADER VERT 24POS 3MM

Part	Current Rating (Amps)	Shrouding	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Material	Termination	Contact Finish - Post	Number of Positions	Style	Fastening Type	Mounting Type	Insulation Color	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Finish - Mating	Number of Positions Loaded
TE Connectivity AMP Connectors 2-794631-4	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	2	0.118 in	3 mm	Square	Brass	Press-Fit, Solder	Tin-Lead	24	Board to Cable/Wire	Locking Ramp	Through Hole	Black	Header	3.18 mm	0.125 in	2.54 µm	100 µin	General Purpose	Male Pin	9.25 mm	0.364 in	15 µin	0.38 µm	250 VDC	3 mm	0.118 in	Nylon, Polyamide (PA)	Gold	All
TE Connectivity AMP Connectors 794631-6	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	2	0.118 in	3 mm	Square	Brass	Press-Fit, Solder	Tin-Lead	6	Board to Cable/Wire	Locking Ramp	Through Hole	Black	Header	3.18 mm	0.125 in	2.54 µm	100 µin	General Purpose	Male Pin	9.25 mm	0.364 in	15 µin	0.38 µm	250 VDC	3 mm	0.118 in	Nylon, Polyamide (PA)	Gold	All
TE Connectivity AMP Connectors 3-794631-2	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	2			Square	Brass	Press-Fit, Solder	Tin	2	Board to Cable/Wire	Locking Ramp	Through Hole	Black	Header	3.18 mm	0.125 in	2.54 µm	100 µin	General Purpose	Male Pin	9.25 mm	0.364 in	15 µin	0.38 µm	250 VDC	3 mm	0.118 in	Nylon, Polyamide (PA)	Gold	All
TE Connectivity AMP Connectors 1-794631-4	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	2	0.118 in	3 mm	Square	Brass	Press-Fit, Solder	Tin-Lead	14	Board to Cable/Wire	Locking Ramp	Through Hole	Black	Header	3.18 mm	0.125 in	2.54 µm	100 µin	General Purpose	Male Pin	9.25 mm	0.364 in	15 µin	0.38 µm	250 VDC	3 mm	0.118 in	Nylon, Polyamide (PA)	Gold	All
TE Connectivity AMP Connectors 1-794631-0	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	2	0.118 in	3 mm	Square	Brass	Press-Fit, Solder	Tin-Lead	10	Board to Cable/Wire	Locking Ramp	Through Hole	Black	Header	3.18 mm	0.125 in	2.54 µm	100 µin	General Purpose	Male Pin	9.25 mm	0.364 in	15 µin	0.38 µm	250 VDC	3 mm	0.118 in	Nylon, Polyamide (PA)	Gold	All
TE Connectivity AMP Connectors 794631-8	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	2	0.118 in	3 mm	Square	Brass	Press-Fit, Solder	Tin-Lead	8	Board to Cable/Wire	Locking Ramp	Through Hole	Black	Header	3.18 mm	0.125 in	2.54 µm	100 µin	General Purpose	Male Pin	9.25 mm	0.364 in	15 µin	0.38 µm	250 VDC	3 mm	0.118 in	Nylon, Polyamide (PA)	Gold	All
TE Connectivity AMP Connectors 4-794631-0	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	2	0.118 in	3 mm	Square	Brass	Press-Fit, Solder	Tin	10	Board to Cable/Wire	Locking Ramp	Through Hole	Black	Header	3.18 mm	0.125 in	2.54 µm	100 µin	General Purpose	Male Pin	9.25 mm	0.364 in	15 µin	0.38 µm	250 VDC	3 mm	0.118 in	Nylon, Polyamide (PA)	Gold or Gold-Palladium	All
TE Connectivity AMP Connectors 3-794631-6	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	2	0.118 in	3 mm	Square	Brass	Press-Fit, Solder	Tin	6	Board to Cable/Wire	Locking Ramp	Through Hole	Black	Header	3.18 mm	0.125 in	2.54 µm	100 µin	General Purpose	Male Pin	9.25 mm	0.364 in	15 µin	0.38 µm	250 VDC	3 mm	0.118 in	Nylon, Polyamide (PA)	Gold or Gold-Palladium	All
TE Connectivity AMP Connectors 794631-2	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	2			Square	Brass	Press-Fit, Solder	Tin-Lead	2	Board to Cable/Wire	Locking Ramp	Through Hole	Black	Header	3.18 mm	0.125 in	2.54 µm	100 µin	General Purpose	Male Pin	9.25 mm	0.364 in	15 µin	0.38 µm	250 VDC	3 mm	0.118 in	Nylon, Polyamide (PA)	Gold	All
TE Connectivity AMP Connectors 3-794631-4	Varies by Wire Gauge	Shrouded - 4 Wall	UL94 V-0	-40 °C	105 ░C	2	0.118 in	3 mm	Square	Brass	Press-Fit, Solder	Tin	4	Board to Cable/Wire	Locking Ramp	Through Hole	Black	Header	3.18 mm	0.125 in	2.54 µm	100 µin	General Purpose	Male Pin	9.25 mm	0.364 in	15 µin	0.38 µm	250 VDC	3 mm	0.118 in	Nylon, Polyamide (PA)	Gold	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.88
		10	$ 2.44

Description

General part information

794631 Series

Connector Header Through Hole 10 position 0.118" (3.00mm)
