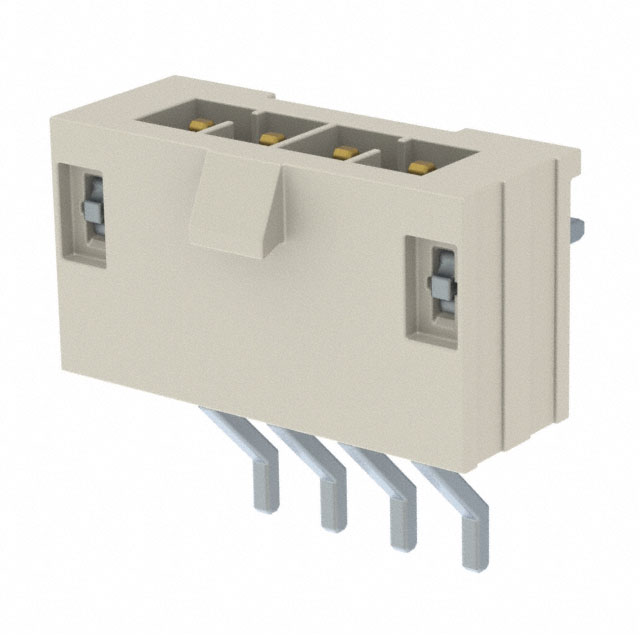

IPL1-104-02-L-SH-K-TR

Active

Samtec Inc.

CONN WIRE TO BOARD HDR 4 POS 2.54MM SOLDER RA SIDE ENTRY SMD MINI MATE® T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIPD1 Series Other Related Documents 03 Datasheet +2

IPL1-104-02-L-SH-K-TR

Active

Samtec Inc.

CONN WIRE TO BOARD HDR 4 POS 2.54MM SOLDER RA SIDE ENTRY SMD MINI MATE® T/R

Deep-Dive with AI

DocumentsIPD1 Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-104-02-L-SH-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-104 Series

Part	Insulation Color	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Shrouding	Insulation Material	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Style	Contact Material	Termination	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Rows	Insulation Height	Insulation Height	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Number of Positions	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Type	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. IPL1-104-01-L-D-RA-K	Natural	Gold	5.46 mm	0.215 in	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	2.54 mm	0.1 in	UL94 V-0	Board to Cable/Wire	Phosphor Bronze	Solder	All	10 çin	0.25 çm	Through Hole Right Angle	2	7.37 mm	0.29 in	Tin	2.16 mm	0.085 in	8	Locking Ramp	0.1 in	2.54 mm	-55 °C	125 °C	Square	Male Pin	675 VAC 954 VDC
Samtec Inc. IPL1-104-01-S-S-K	Natural	Gold	5.46 mm	0.215 in	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header			UL94 V-0	Board to Cable/Wire	Phosphor Bronze	Solder	All	30 Áin	0.76 Ám	Through Hole	1	8.13 mm	0.32 in	Tin			4	Locking Ramp	0.1 in	2.54 mm	-55 °C	125 °C	Square	Male Pin	675 VAC 954 VDC	0.12 in	3.05 mm
Samtec Inc. IPL1-104-01-SM-S-RA-K	Natural	Gold	5.46 mm	0.215 in	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header			UL94 V-0	Board to Cable/Wire	Phosphor Bronze	Solder	All	30 Áin	0.76 Ám	Through Hole Right Angle	1	6.1 mm	0.24 in	Tin	2.16 mm	0.085 in	4	Locking Ramp	0.1 in	2.54 mm	-55 °C	125 °C	Square	Male Pin	675 VAC 954 VDC
Samtec Inc. IPL1-104-02-L-SH-K-TR	Natural	Gold	5.46 mm	0.215 in	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header			UL94 V-0	Board to Cable/Wire	Phosphor Bronze	Solder	All	10 çin	0.25 çm	Surface Mount Right Angle	1	5.6 mm	0.22 in	Tin			4	Locking Ramp	0.1 in	2.54 mm	-55 °C	125 °C	Square	Male Pin	675 VAC 954 VDC			Board Guide
Samtec Inc. IPL1-104-01-H-D-K	Natural	Gold	5.46 mm	0.215 in	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	2.54 mm	0.1 in	UL94 V-0	Board to Cable/Wire	Phosphor Bronze	Solder	All	30 Áin	0.76 Ám	Through Hole	2	8.13 mm	0.32 in	Gold			8	Locking Ramp	0.1 in	2.54 mm	-55 °C	125 °C	Square	Male Pin	675 VAC 954 VDC	0.12 in	3.05 mm		3 µin	0.076 µm
Samtec Inc. IPL1-104-01-F-D-K	Natural	Gold	5.46 mm	0.215 in	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	2.54 mm	0.1 in	UL94 V-0	Board to Cable/Wire	Phosphor Bronze	Solder	All	3 µin	0.076 µm	Through Hole	2	8.13 mm	0.32 in	Tin			8	Locking Ramp	0.1 in	2.54 mm	-55 °C	125 °C	Square	Male Pin	675 VAC 954 VDC	0.12 in	3.05 mm
Samtec Inc. IPL1-104-02-L-S-K	Natural	Gold	5.46 mm	0.215 in	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header			UL94 V-0	Board to Cable/Wire	Phosphor Bronze	Solder	All	10 çin	0.25 çm	Surface Mount	1	8.13 mm	0.32 in	Tin			4	Locking Ramp	0.1 in	2.54 mm	-55 °C	125 °C	Square	Male Pin	675 VAC 954 VDC
Samtec Inc. IPL1-104-01-L-D-RE1-K	Natural	Gold	5.46 mm	0.215 in	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	2.54 mm	0.1 in	UL94 V-0	Board to Cable/Wire	Phosphor Bronze	Solder	All	10 çin	0.25 çm	Through Hole Right Angle	2	8.25 mm	0.325 in	Tin	2.16 mm	0.085 in	8	Locking Ramp	0.1 in	2.54 mm	-55 °C	125 °C	Square	Male Pin	675 VAC 954 VDC
Samtec Inc. IPL1-104-02-SM-D-K	Natural	Gold	5.46 mm	0.215 in	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header	2.54 mm	0.1 in	UL94 V-0	Board to Cable/Wire	Phosphor Bronze	Solder	All	30 Áin	0.76 Ám	Surface Mount	2	8.13 mm	0.32 in	Tin			8	Locking Ramp	0.1 in	2.54 mm	-55 °C	125 °C	Square	Male Pin	675 VAC 954 VDC
Samtec Inc. IPL1-104-02-F-S-K-TR	Natural	Gold	5.46 mm	0.215 in	Shrouded - 4 Wall	Liquid Crystal Polymer (LCP)	Header			UL94 V-0	Board to Cable/Wire	Phosphor Bronze	Solder	All	3 µin	0.076 µm	Surface Mount	1	8.13 mm	0.32 in	Tin			4	Locking Ramp	0.1 in	2.54 mm	-55 °C	125 °C	Square	Male Pin	675 VAC 954 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.56
		25	$ 3.10
		50	$ 2.81
		100	$ 2.45
		500	$ 2.13
		1000	$ 2.07
Digikey	Cut Tape (CT)	1	$ 3.56
		25	$ 3.10
		50	$ 2.81
		100	$ 2.44
	Digi-Reel®	1	$ 3.56
		25	$ 3.10
		50	$ 2.81
		100	$ 2.44
	Tape & Reel (TR)	250	$ 2.44
		500	$ 2.13
		1250	$ 2.06
