2-111623-0

Active

TE Connectivity Raychem Cable Protection

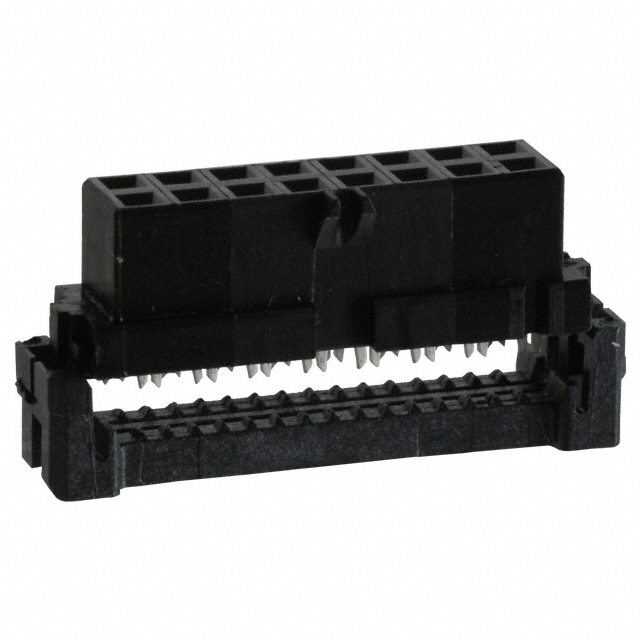

CONN IDC CONNECTOR RCP 16 POS 2MM IDT RA CABLE MOUNT BOX/TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-111623-0

Active

TE Connectivity Raychem Cable Protection

CONN IDC CONNECTOR RCP 16 POS 2MM IDT RA CABLE MOUNT BOX/TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-111623-0

Cable Termination	IDC
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Polarizing Key, Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

111623 Series

Part	Wire Gauge	Color	Connector Type	Features	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Mounting Type	Contact Finish	Number of Rows	Row Spacing	Row Spacing	Number of Positions	Pitch [x]	Pitch [x]	Cable Termination	Number of Positions
TE Connectivity Raychem Cable Protection 3-111623-0	28 AWG	Black	Receptacle	Feed Through Polarizing Key	Female Socket	0.76 Ám	30 Áin	Ribbon Cable	Free Hanging (In-Line)	Gold	2	2 mm	0.079 in	8	0.079 in	2 mm	IDC
TE Connectivity Raychem Cable Protection 2-111623-0	28 AWG	Black	Receptacle	Feed Through Polarizing Key	Female Socket	0.76 Ám	30 Áin	Ribbon Cable	Free Hanging (In-Line)	Gold	2	2 mm	0.079 in		0.079 in	2 mm	IDC	16
TE Connectivity Raychem Cable Protection 1-111623-9	28 AWG	Black	Receptacle	Feed Through Polarizing Key	Female Socket	0.76 Ám	30 Áin	Ribbon Cable	Free Hanging (In-Line)	Gold	2	2 mm	0.079 in	14	0.079 in	2 mm	IDC
TE Connectivity Raychem Cable Protection 2-111623-8	28 AWG	Black	Receptacle	Feed Through Polarizing Key	Female Socket	0.76 Ám	30 Áin	Ribbon Cable	Free Hanging (In-Line)	Gold	2	2 mm	0.079 in	34	0.079 in	2 mm	IDC
TE Connectivity Raychem Cable Protection 111623-6	28 AWG	Black	Receptacle	Feed Through Polarizing Key	Female Socket	0.76 Ám	30 Áin	Ribbon Cable	Free Hanging (In-Line)	Gold	2	2 mm	0.079 in	26	0.079 in	2 mm	IDC
TE Connectivity Raychem Cable Protection 111623-7	28 AWG	Black	Receptacle	Feed Through Polarizing Key	Female Socket	0.76 Ám	30 Áin	Ribbon Cable	Free Hanging (In-Line)	Gold	2	2 mm	0.079 in	30	0.079 in	2 mm	IDC
TE Connectivity Raychem Cable Protection 2-111623-7	28 AWG	Black	Receptacle	Feed Through Polarizing Key	Female Socket	0.76 Ám	30 Áin	Ribbon Cable	Free Hanging (In-Line)	Gold	2	2 mm	0.079 in	24	0.079 in	2 mm	IDC
TE Connectivity Raychem Cable Protection 2-111623-3	28 AWG	Black	Receptacle	Feed Through Polarizing Key	Female Socket	0.76 Ám	30 Áin	Ribbon Cable	Free Hanging (In-Line)	Gold	2	2 mm	0.079 in	30	0.079 in	2 mm	IDC
TE Connectivity Raychem Cable Protection 111623-4	28 AWG	Black	Receptacle	Feed Through Polarizing Key	Female Socket	0.76 Ám	30 Áin	Ribbon Cable	Free Hanging (In-Line)	Gold	2	2 mm	0.079 in	20	0.079 in	2 mm	IDC
TE Connectivity Raychem Cable Protection 1-111623-0	28 AWG	Black	Receptacle	Feed Through Polarizing Key	Female Socket	0.76 Ám	30 Áin	Ribbon Cable	Free Hanging (In-Line)	Gold	2	2 mm	0.079 in	44	0.079 in	2 mm	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.84
		10	$ 4.22
		25	$ 4.10
		60	$ 3.99
		120	$ 3.91

Description

General part information

111623 Series

16 Position Rectangular Receptacle Connector IDC Gold 28 AWG
