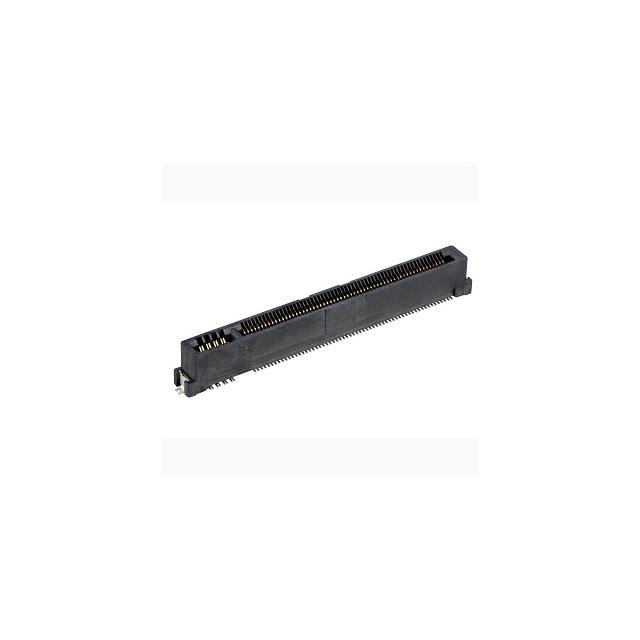

SE1814023111111

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 148P 0.026

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 148P 0.026

Technical Specifications

Parameters and characteristics for this part

Specification	SE1814023111111

Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Solder Retention, Board Guide
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Surface Mount
Number of Positions [custom]	140
Number of Positions [custom]	8
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.026 in
Pitch [x]	0.65 mm
Read Out	Dual
Termination	Solder

Part	Read Out	Number of Rows	Mounting Type	Gender	Card Type	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Pitch [x]	Pitch [x]	Color	Contact Type	Features	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination
Amphenol ICC (FCI) SE1814023111111	Dual	2	Surface Mount	Female	Non Specified - Dual Edge	140	8	Gold	0.026 in	0.65 mm	Black	Cantilever	Board Guide Solder Retention	Thermoplastic	105 ░C	-55 °C	0.76 Ám	30 Áin	Copper Alloy	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

148 (140 + 8 Power) Position Female Connector Non Specified - Dual Edge Gold 0.026" (0.65mm) Black
