1-1376392-2
ActiveTE Connectivity AMP Connectors

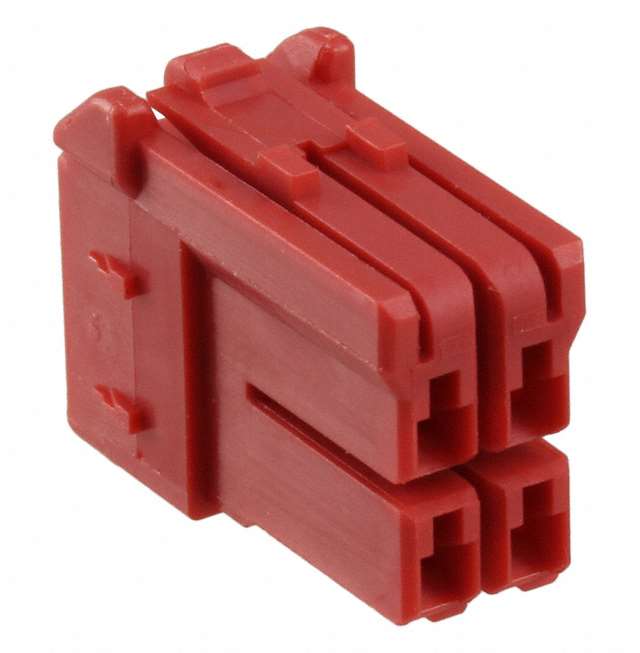

CONN PLUG HSG 4POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1376392-2
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 4POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1376392-2 | 1376392 Series |
|---|---|---|
| Color | Red | Blue, Yellow, Red, Natural |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 4 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -30 ░C | -40 - -30 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 6.2 mm | 6.2 mm |
| Row Spacing | 0.244 in | 0.244 in |
1376392 Series
CONN PLUG HSG 4POS 5.00MM
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Insulation Material | Row Spacing | Row Spacing | Color | Contact Termination | Note | Contact Type | Fastening Type | Pitch [x] | Pitch [x] | Number of Positions | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1376392-3 | Free Hanging (In-Line) | -40 °C | 105 ░C | Plug | Polyamide (PA66), Nylon 6/6 | 6.2 mm | 0.244 in | Blue | Crimp | Contacts Not Included | Female Socket | Latch Holder | 5 mm | 0.197 in | 4 | 2 |
TE Connectivity AMP Connectors 3-1376392-4 | Free Hanging (In-Line) | -40 °C | 105 ░C | Plug | Polyamide (PA66), Nylon 6/6 | 6.2 mm | 0.244 in | Yellow | Crimp | Contacts Not Included | Female Socket | Latch Holder | 5 mm | 0.197 in | 4 | 2 |
TE Connectivity AMP Connectors 1-1376392-2 | Free Hanging (In-Line) | -30 ░C | 105 ░C | Plug | Polyamide (PA66), Nylon 6/6, Glass Filled | 6.2 mm | 0.244 in | Red | Crimp | Contacts Not Included | Female Socket | Latch Holder | 5 mm | 0.197 in | 4 | 2 |
TE Connectivity AMP Connectors 1376392-1 | Free Hanging (In-Line) | -30 ░C | 105 ░C | Plug | Polyamide (PA66), Nylon 6/6, Glass Filled | 6.2 mm | 0.244 in | Natural | Crimp | Contacts Not Included | Female Socket | Latch Holder | 5 mm | 0.197 in | 4 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.56 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.52 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.32 | |||
| 2500 | $ 0.32 | |||
Description
General part information
1376392 Series
4 Rectangular Connectors - Housings Plug Red 0.197" (5.00mm)
