EM1126-48-2#

Active

Pomona Electronics

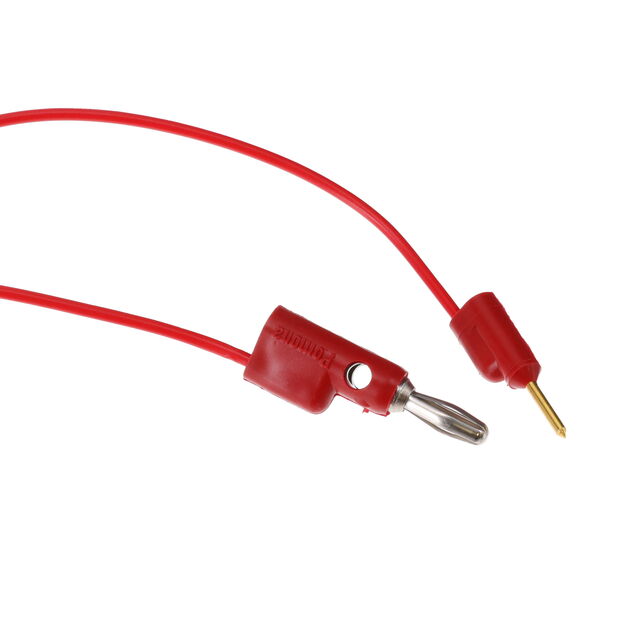

TEST LEADS BANANA PLUG/PIN TIP PLUG (RED)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EM1126-48-2#

Active

Pomona Electronics

TEST LEADS BANANA PLUG/PIN TIP PLUG (RED)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EM1126-48-2#

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Tip Plug
2nd Connector	Stackable
Cable Length	48 in
Cable Length	1219.2 mm
Configuration	Banana to Pin Tip
Contents	Red
Contents [custom]	1
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Front Stacking Pin Tip Plug, Multistacking Banana Plug
Type	Patch Cord
Voltage - Rated	3 kV
Voltage - Rated	3000 V
Wire Gauge	20 AWG

EM1126 Series

Part	Cable Length	Cable Length	1st Connector	Current Rating (Amps)	Configuration	Voltage - Rated	Voltage - Rated	Type	Contents	Material - Insulation	2nd Connector	2nd Connector	Stacking Method	Wire Gauge	Contents [custom]
Pomona Electronics EM1126-12-0#	12 in	304.8 mm	Banana Plug Single Stackable	5 A	Banana to Pin Tip	3 kV	3000 V	Patch Cord	1 Lead Black	Poly-Vinyl Chloride (PVC)	Tip Plug	Stackable	Front Stacking Pin Tip Plug Multistacking Banana Plug	20 AWG
Pomona Electronics EM1126-36-0#	36 in	914.4 mm	Banana Plug Single Stackable	5 A	Banana to Pin Tip	3 kV	3000 V	Patch Cord	1 Lead Black	Poly-Vinyl Chloride (PVC)	Tip Plug	Stackable	Front Stacking Pin Tip Plug Multistacking Banana Plug	20 AWG
Pomona Electronics EM1126-48-2#	48 in	1219.2 mm	Banana Plug Single Stackable	5 A	Banana to Pin Tip	3 kV	3000 V	Patch Cord	Red	Poly-Vinyl Chloride (PVC)	Tip Plug	Stackable	Front Stacking Pin Tip Plug Multistacking Banana Plug	20 AWG	1
Pomona Electronics EM1126-24-2#	24 "	609.6 mm	Banana Plug Single Stackable	5 A	Banana to Pin Tip	3 kV	3000 V	Patch Cord	Red	Poly-Vinyl Chloride (PVC)	Tip Plug	Stackable	Front Stacking Pin Tip Plug Multistacking Banana Plug	20 AWG	1
Pomona Electronics EM1126-24-0#	24 "	609.6 mm	Banana Plug Single Stackable	5 A	Banana to Pin Tip	3 kV	3000 V	Patch Cord	1 Lead Black	Poly-Vinyl Chloride (PVC)	Tip Plug	Stackable	Front Stacking Pin Tip Plug Multistacking Banana Plug	20 AWG
Pomona Electronics EM1126-12-9#	12 in	304.8 mm	Banana Plug Single Stackable	5 A	Banana to Pin Tip	3 kV	3000 V	Patch Cord	1 Lead White	Poly-Vinyl Chloride (PVC)	Tip Plug	Stackable	Front Stacking Pin Tip Plug Multistacking Banana Plug	20 AWG
Pomona Electronics EM1126-36-2#	36 in	914.4 mm	Banana Plug Single Stackable	5 A	Banana to Pin Tip	3 kV	3000 V	Patch Cord	Red	Poly-Vinyl Chloride (PVC)	Tip Plug	Stackable	Front Stacking Pin Tip Plug Multistacking Banana Plug	20 AWG	1
Pomona Electronics EM1126-12-2#	12 in	304.8 mm	Banana Plug Single Stackable	5 A	Banana to Pin Tip	3 kV	3000 V	Patch Cord	Red	Poly-Vinyl Chloride (PVC)	Tip Plug	Stackable	Front Stacking Pin Tip Plug Multistacking Banana Plug	20 AWG	1
Pomona Electronics EM1126-60-2#	5 ft	1524 mm	Banana Plug Single Stackable	5 A	Banana to Pin Tip	3 kV	3000 V	Patch Cord	Red	Poly-Vinyl Chloride (PVC)	Tip Plug	Stackable	Front Stacking Pin Tip Plug Multistacking Banana Plug	20 AWG	1
Pomona Electronics EM1126-60-0#	5 ft	1524 mm	Banana Plug Single Stackable	5 A	Banana to Pin Tip	3 kV	3000 V	Patch Cord	1 Lead Black	Poly-Vinyl Chloride (PVC)	Tip Plug	Stackable	Front Stacking Pin Tip Plug Multistacking Banana Plug	20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.29
		25	$ 11.04

Description

General part information

EM1126 Series

48.0" (1219.20mm) Banana Plug, Single, Stackable To Tip Plug, Stackable Patch Cord 3000VDC (3kV)
