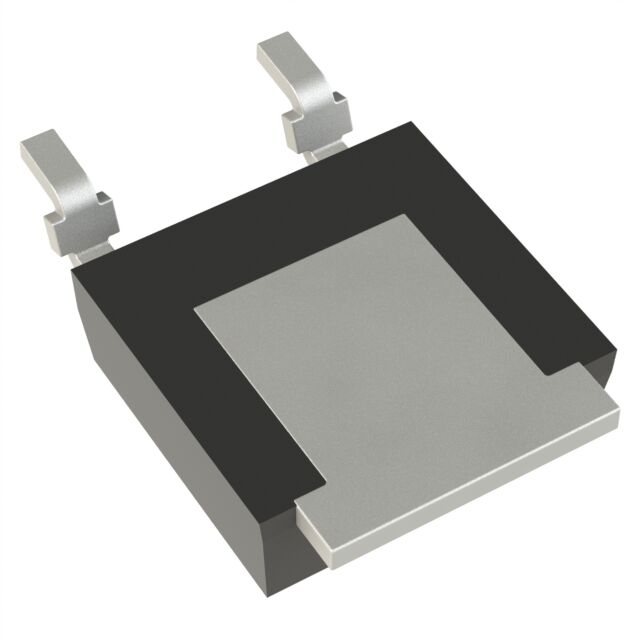

ZXMN20B28KTC
ActiveDiodes Inc
TRANS MOSFET N-CH 200V 2.3A 3-PIN(2+TAB) TO-252 T/R
Deep-Dive with AI
Search across all available documentation for this part.
ZXMN20B28KTC
ActiveDiodes Inc
TRANS MOSFET N-CH 200V 2.3A 3-PIN(2+TAB) TO-252 T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZXMN20B28KTC |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 1.5 A |
| Drain to Source Voltage (Vdss) | 200 V |
| Drive Voltage (Max Rds On, Min Rds On) [Max] | 10 V |
| Drive Voltage (Max Rds On, Min Rds On) [Min] | 5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 8.1 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 358 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Power Dissipation (Max) | 2.2 W |
| Rds On (Max) @ Id, Vgs | 750 mOhm |
| Supplier Device Package | TO-252-3 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 2.5 V |
