227-1221-3

Active

Amphenol RF

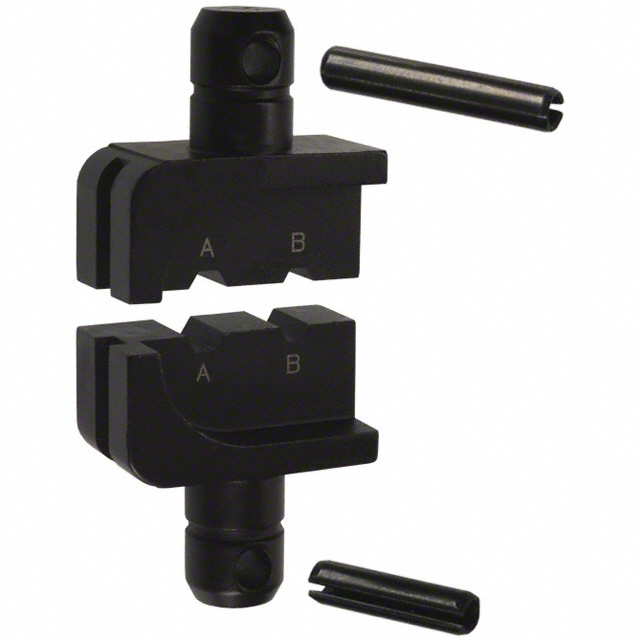

TOOL DIE SET FERRULE RG-174/316

Search across all available documentation for this part.

Active

Amphenol RF

TOOL DIE SET FERRULE RG-174/316

Technical Specifications

Parameters and characteristics for this part

Specification	227-1221-3

Cable Group	186A, 179B, RG-174, 316, 187A
Compatible Tools	227-944
For Use With/Related Products	Coaxial, RF - SMA
Specifications [Max]	0.128 in
Specifications [Min]	0.105 in
Tool Type	Die Set

Part	Specifications	Cable Group	For Use With/Related Products	Compatible Tools	Tool Type	Specifications [Min]	Specifications [Max]	Specifications [custom]	Specifications	Specifications [custom]	Specifications [custom]
Amphenol RF 227-1221-29	0.1 in 0.324 in	143 21 212 222 304 6 RG-5	Coaxial RF - N	227-944	Die Set
Amphenol RF 227-1221-3		179B 186A 187A 316 RG-174	Coaxial RF - SMA	227-944	Die Set	0.105 in	0.128 in
Amphenol RF 227-1221-11		141 142 223 303 400 58 RG-55	BNC Coaxial RF SMA TNC UHF	227-944	Die Set			0.068 in 0.213 in
Amphenol RF 227-1221-32			Coaxial RF Connectors	227-944	Die Set			0.068 in 0.324 in
Amphenol RF 227-1221-57	0.1 in	141 142 223 303 400 58 RG-55	Coaxial RF - N	227-944	Die Set				0.213 in
Amphenol RF 227-1221-6001			Coaxial RF - N	227-944	Die Set
Amphenol RF 227-1221-13		140 210 62 RG-59	Coaxial RF - BNC TNC UHF	227-944	Die Set			0.068 in 0.255 in
Amphenol RF 227-1221-25		11 149 165 213 214 216 225 393 87A 9 RG-8	Coaxial RF - N	227-944	Die Set					0.429 in	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tool Die Set For Coaxial, RF - SMA
