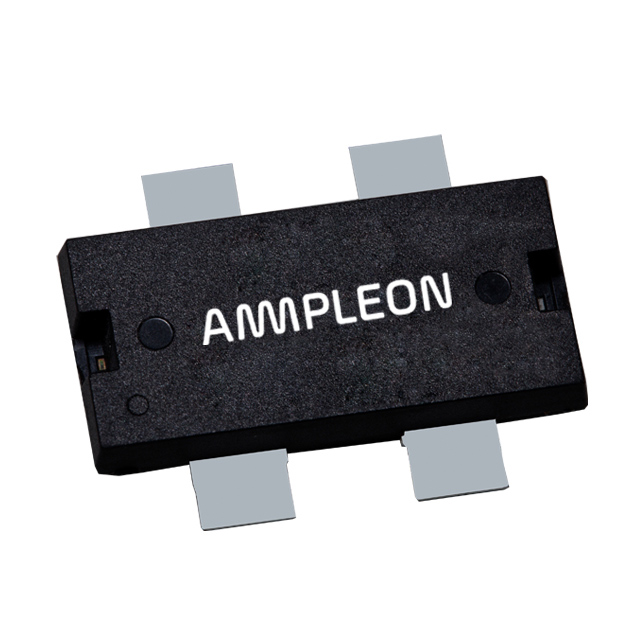

BLP05H6110XRY

Ampleon USA Inc.

RF MOSFET LDMOS 50V 4HSOPF

Search across all available documentation for this part.

Ampleon USA Inc.

RF MOSFET LDMOS 50V 4HSOPF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 50 V 20 mA 108MHz 27dB 110W 4-HSOPF

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 28V 4HSOP

Part	Package / Case	Supplier Device Package	Voltage - Rated	Power - Output	Voltage - Test	Frequency	Configuration	Gain	Current - Test	Mounting Type	Package / Case [y]	Package / Case [y]
Ampleon USA Inc. BLP05M7200Y	4-HSOPF, SOT-1138	4-HSOP	65 V	210 W	28 V	440 MHz	Common Source, Dual	21 dB	2 mA	Surface Mount
Ampleon USA Inc. BLP05H6150XRY	SOT-1223-2	4-HSOPF	135 V	150 W	50 V	108 MHz	Common Source, Dual	27 dB	100 mA	Surface Mount
Ampleon USA Inc. BLP05H6350XRGY	4-BESOP	4-HSOP	135 V	350 W	50 V	108 MHz	Common Source, Dual	27 dB	100 mA	Surface Mount	4.4 mm	0.173 in
Ampleon USA Inc. BLP05H6110XRY	SOT-1223-2	4-HSOPF	135 V	110 W	50 V	108 MHz	Common Source, Dual	27 dB	20 mA	Surface Mount
Ampleon USA Inc. BLP05H675XRGY	4-BESOP	4-HSOP	135 V	75 W	50 V	108 MHz	Common Source, Dual	27 dB	20 mA	Surface Mount	4.4 mm	0.173 in
Ampleon USA Inc. BLP05H6150XRGY	4-BESOP	4-HSOP	135 V	150 W	50 V	108 MHz	Common Source, Dual	27 dB	100 mA	Surface Mount	4.4 mm	0.173 in
Ampleon USA Inc. BLP05H635XRGY	4-BESOP	4-HSOP	135 V	35 W	50 V	108 MHz	Common Source, Dual	27 dB	10 mA	Surface Mount	4.4 mm	0.173 in
Ampleon USA Inc. BLP05H675XRY	SOT-1223-2	4-HSOPF	135 V	75 W	50 V	108 MHz	Common Source, Dual	27 dB	20 mA	Surface Mount
Ampleon USA Inc. BLP05H6350XRY	SOT-1223-2	4-HSOPF	135 V	350 W	50 V	108 MHz	Common Source, Dual	27 dB	100 mA	Surface Mount
Ampleon USA Inc. BLP05H6110XRGY	4-BESOP	4-HSOP	135 V	110 W	50 V	108 MHz	Common Source, Dual	27 dB	20 mA	Surface Mount	4.4 mm	0.173 in
