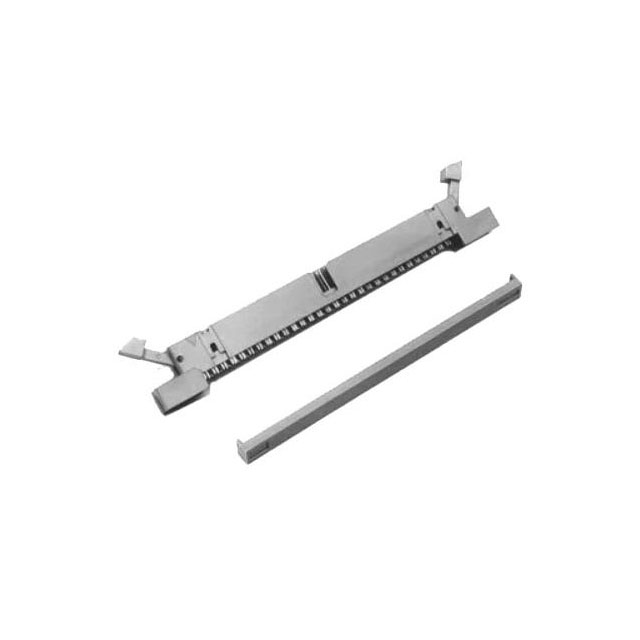

4620-6201

Active

3M (TC)

CONN PLUG 20P IDC 26-28AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN PLUG 20P IDC 26-28AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Features	Contact Type	Color	Pitch [x]	Pitch [x]	Number of Rows	Cable Termination	Mounting Type	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Number of Positions	Fastening Type
3M (TC) 4620-7001	Plug	Closed End	Male Pin	Gray	2.54 mm	0.1 in	2	IDC	Free Hanging (In-Line)	Discrete or Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	26 AWG	28 AWG	Solid Stranded	20
3M (TC) 4620-6201	Plug	Feed Through	Male Pin	Gray	2.54 mm	0.1 in	2	IDC	Free Hanging (In-Line)	Discrete or Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	26 AWG	28 AWG	Solid Stranded	20	Latch Lock/Eject Hooks Short
3M (TC) 4620-7005	Plug	Closed End	Male Pin	Gray	2.54 mm	0.1 in	2	IDC	Free Hanging (In-Line)	Discrete or Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	26 AWG	28 AWG	Solid Stranded	20
3M (TC) 4620-7201	Plug	Closed End	Male Pin	Gray	2.54 mm	0.1 in	2	IDC	Free Hanging (In-Line)	Discrete or Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	26 AWG	28 AWG	Solid Stranded	20	Latch Lock/Eject Hooks Short
3M (TC) 4620-6300	Plug	Feed Through	Male Pin	Gray	2.54 mm	0.1 in	2	IDC	Free Hanging (In-Line)	Discrete or Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	26 AWG	28 AWG	Solid Stranded	20	Latch Lock/Eject Hooks Long
3M (TC) 4620-7000	Plug	Closed End	Male Pin	Gray	2.54 mm	0.1 in	2	IDC	Free Hanging (In-Line)	Discrete or Ribbon Cable	0.76 Ám	30 Áin	0.1 in	2.54 mm	Gold	26 AWG	28 AWG	Solid Stranded	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Rectangular Plug Connector IDC Gold 26-28 AWG, Stranded or Solid
