TS2P9F26
ActiveSwitchcraft Inc.

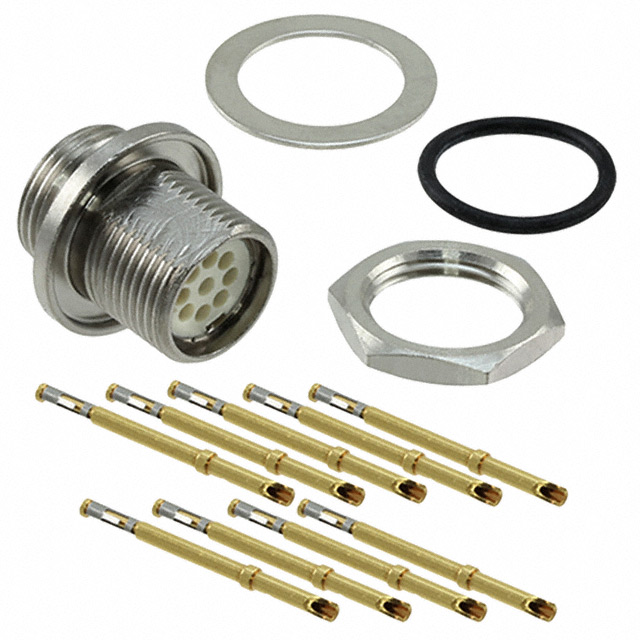

CONN RCPT FMALE 9POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS2P9F26
ActiveSwitchcraft Inc.
CONN RCPT FMALE 9POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TS2P9F26 | TS2P9F Series |
|---|---|---|
| Applications | Audio, Testing Equipment & Measurement, Agriculture, Medical, General | Audio, Testing Equipment & Measurement, Agriculture, Medical, General |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions | 9 | 9 |
| Operating Temperature [Max] | 135 °C | 135 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Electroless Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
| Termination | Crimp, Solder Cup | Crimp, Solder Cup, Solder |
| Voltage Rating | 30 VAC | 30 VAC |
TS2P9F Series
CONN RCPT FMALE 9POS GOLD CRIMP
| Part | Applications | Primary Material | Connector Type | Color | Shielding | Insert Material | Shell Material | Ingress Protection | Mounting Feature | Shell Finish | Contact Material | Orientation | Termination | Number of Positions | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. TS2P9F26 | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Metal | Receptacle, Female Sockets | Silver | Shielded | Liquid Crystal Polymer (LCP) | Copper Alloy | IP66, IP67, IP68 | Bulkhead - Rear Side Nut | Electroless Nickel | Copper Alloy | Keyed | Crimp, Solder Cup | 9 | 30 VAC | 135 °C | -40 °C | Gold | |
Switchcraft Inc. TS2P9F26-BP | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Metal | Receptacle, Female Sockets | Silver | Shielded | Liquid Crystal Polymer (LCP) | Copper Alloy | IP66, IP67, IP68 | Bulkhead - Front Side Nut | Electroless Nickel | Copper Alloy | Keyed | Solder | 9 | 30 VAC | 135 °C | -40 °C | Gold | Panel Mount, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 26.38 | |
Description
General part information
TS2P9F Series
9 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
Documents
Technical documentation and resources
