Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.92 | |
| 50 | $ 1.69 | |||
| 100 | $ 1.34 | |||
| 500 | $ 1.09 | |||
| 1000 | $ 0.98 | |||
| 2000 | $ 0.93 | |||
| 5000 | $ 0.91 | |||
General part information

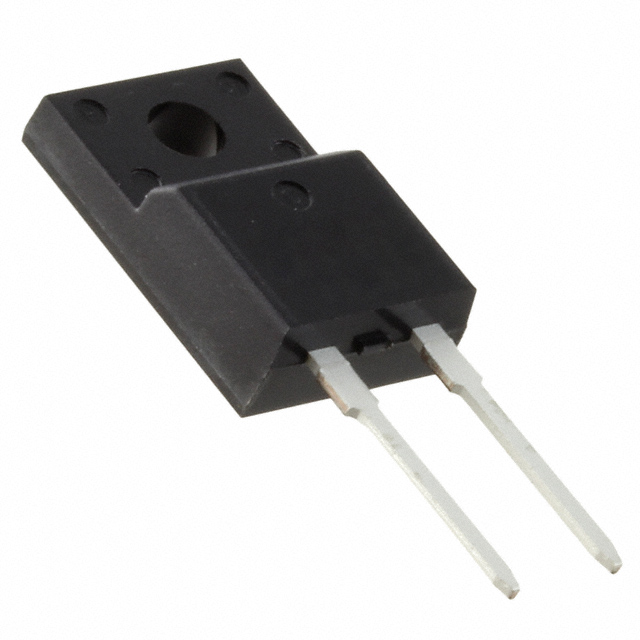

Diode 600 V 10A Through Hole TO-220ACFP
Technical documentation and resources
Parameters and characteristics for this part
| Specification | DFE10I600PM |
|---|---|
| Current - Average Rectified (Io) | 10 A |
| Current - Reverse Leakage @ Vr | 20 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | TO-220-2 Full Pack, Isolated Tab |
| Reverse Recovery Time (trr) | 35 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-220ACFP |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V |
DIODE GP 600V 10A TO220ACFP
| Part | Supplier Device Package | Reverse Recovery Time (trr) | Technology | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Voltage - Forward (Vf) (Max) @ If | Current - Average Rectified (Io) | Speed | Package / Case | Current - Reverse Leakage @ Vr | Mounting Type | Voltage - DC Reverse (Vr) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
IXYS DFE10I600PM | TO-220ACFP | 35 ns | Standard | 150 °C | -55 °C | 1.5 V | 10 A | 200 mA, 500 ns | TO-220-2 Full Pack, Isolated Tab | 20 µA | Through Hole | 600 V |
