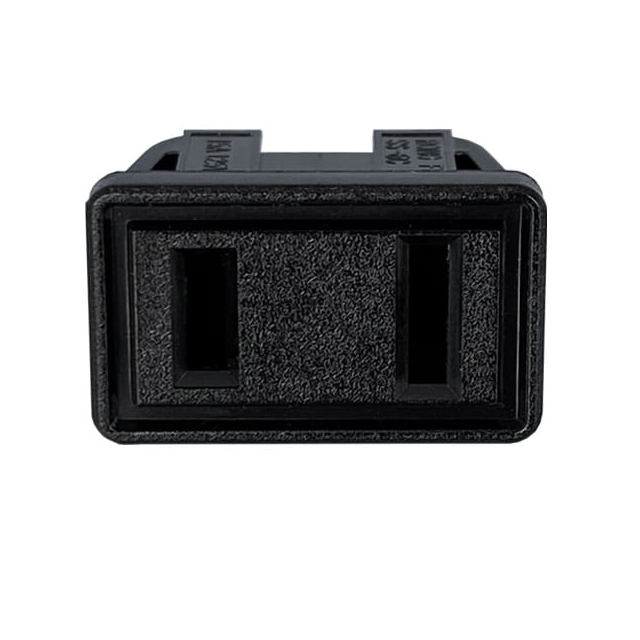

738W-CX2/01
ActiveQualtek
PWR ENT RCPT NEMA1-15 PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
738W-CX2/01
ActiveQualtek
PWR ENT RCPT NEMA1-15 PANEL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 738W-CX2/01 |
|---|---|
| Approval Agency | CSA, UL |
| Connector Style | NEMA 1-15R |
| Connector Type | Receptacle, Female Sockets |
| Current Rating (Amps) | 15 A |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 2 |
| Panel Cutout Dimensions [x] | 22.2 mm |
| Panel Cutout Dimensions [y] | 12.2 mm |
| Panel Thickness [Max] | 1.8 mm |
| Panel Thickness [Max] | 0.071 " |
| Panel Thickness [Min] | 0.039 in |
| Panel Thickness [Min] | 1 mm |
| Termination | 0.189 ", 4.8 mm |
| Termination | Quick Connect |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 10 | $ 0.92 | |||
| 100 | $ 0.83 | |||
| 1000 | $ 0.60 | |||
| 5000 | $ 0.53 | |||
| 10000 | $ 0.50 | |||
Description
General part information
738W-C Series
Power Connector Receptacle, Female Sockets NEMA 1-15R Panel Mount, Snap-In
