9LG1224P1H001

Active

Sanyo Denki America Inc.

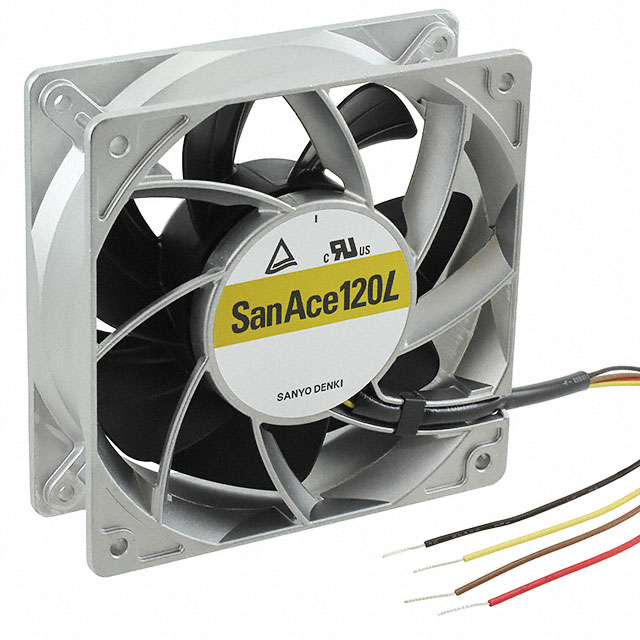

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

9LG1224P1H001

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9LG1224P1H001

Air Flow	176.6 CFM
Air Flow	4.94 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.7 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	180000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	54 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	16.8 W
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	189.3 Pa
Static Pressure	0.76 in H2O
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	15 VDC
Weight	420.03 g
Weight	0.926 lb
Width [y]	38 mm

9LG1224 Series

Part	Material - Frame	Features	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Fan Type	Bearing Type	Width [y]	Voltage - Rated	Material - Blade	Termination	Air Flow	Air Flow	Static Pressure	Static Pressure	Weight	Weight	Approval Agency	Current Rating (Amps)	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Min]	Voltage Range [Max]	Noise	RPM
Sanyo Denki America Inc. 9LG1224A1001	Aluminum	Locked Rotor Protection Speed Sensor (Tach)	120 mm	120 mm	8.88 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads
Sanyo Denki America Inc. 9LG1224P1H001	Aluminum	Locked Rotor Protection PWM Control Speed Sensor (Tach)	119 mm	119 mm	16.8 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	4 Wire Leads	176.6 CFM	4.94 m³/min	189.3 Pa	0.76 in H2O	420.03 g	0.926 lb	CSA TUV UL	0.7 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	54 dB
Sanyo Denki America Inc. 9LG1224A1002	Aluminum		120 mm	120 mm	8.88 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	2 Wire Leads
Sanyo Denki America Inc. 9LG1224P1S001	Aluminum	Locked Rotor Protection PWM Control Speed Sensor (Tach)	119 mm	119 mm	26.4 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	4 Wire Leads	211.8 CFM	5.93 m³/min	269 Pa	1.08 in H2O	420.03 g	0.926 lb	CSA TUV UL	1.1 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	58 dB(A)	5600 RPM
Sanyo Denki America Inc. 9LG1224F1001	Aluminum	Locked Rotor Protection Speed Sensor (Tach)	120 mm	120 mm	4.56 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads
Sanyo Denki America Inc. 9LG1224G1D001	Aluminum	Locked Rotor Sensor	120 mm	120 mm	38.4 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads	247 CFM	6.92 m³/min	368.7 Pa	1.48 in H2O	420.03 g	0.926 lb	CSA TUV UL	1.6 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	62 dB(A)	6550 RPM
Sanyo Denki America Inc. 9LG1224F1D001	Aluminum	Locked Rotor Sensor	120 mm	120 mm	4.56 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads
Sanyo Denki America Inc. 9LG1224F1002	Aluminum		120 mm	120 mm	4.56 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	2 Wire Leads
Sanyo Denki America Inc. 9LG1224H1D001	Aluminum	Locked Rotor Sensor	120 mm	120 mm	16.8 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	3 Wire Leads	176.6 CFM	4.94 m³/min	189.3 Pa	0.76 in H2O	420.03 g	0.926 lb	CSA TUV UL	0.7 A	180000 Hrs	-20 °C	70 °C	-20 C	70 °C	15 VDC	30 V	54 dB
Sanyo Denki America Inc. 9LG1224M1002	Aluminum		120 mm	120 mm	2.64 W	Tubeaxial	Ball	38 mm	24 VDC	Plastic	2 Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.08
		21	$ 85.45
		42	$ 84.25
		63	$ 78.83
		105	$ 77.03

Description

General part information

9LG1224 Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 176.6 CFM (4.94m³/min) 4 Wire Leads
