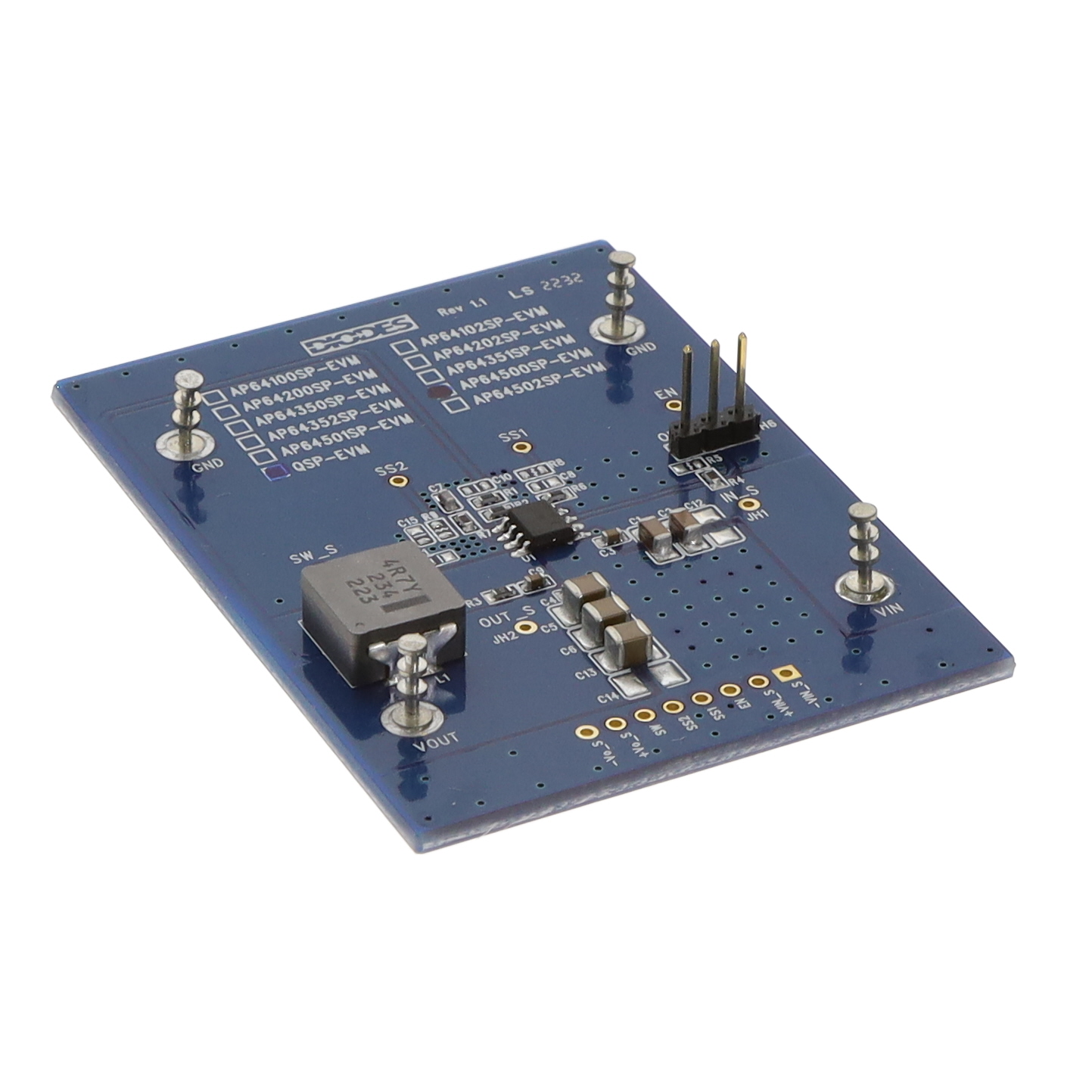

AP64500QSP-EVM

Active

Diodes Inc

EVAL BOARD FOR AP64500Q

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD FOR AP64500Q

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Utilized IC / Part	Main Purpose	Current - Output	Board Type	Voltage - Output [Max]	Voltage - Output [Min]	Regulator Topology	Voltage - Output (Min/Fixed)	Package / Case	Package / Case	Package / Case	Voltage - Input (Min) [Min]	Number of Outputs	Synchronous Rectifier	Qualification	Topology	Output Configuration	Output Type	Mounting Type	Frequency - Switching [Min]	Frequency - Switching [Max]	Supplier Device Package	Function	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Grade
Diodes Inc AP64500QSP-EVM	Board(s)	3.8 V	40 V	Non-Isolated	1	AP64500Q	DC/DC Step Down	5 A	Fully Populated	39 V	0.8 V	Buck
Diodes Inc AP64500QSP-13								5 A					0.8 V	0.154 in	8-SOIC	3.9 mm	3.8 V	1		AEC-Q100	Buck	Positive	Adjustable	Surface Mount	100 kHz	2.2 MHz	8-SO-EP	Step-Down	40 V	-40 °C	125 °C	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 40.00

General part information

AP64500Q - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
