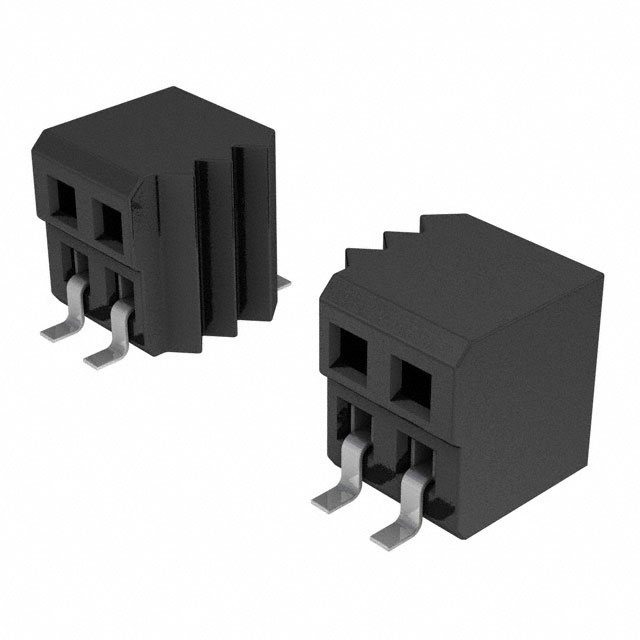

CLP-119-02-F-DH-TR

Active

Samtec Inc.

CONN RCPT 38P 0.05 GOLD SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLP-119-02-F-DH-TR

Active

Samtec Inc.

CONN RCPT 38P 0.05 GOLD SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLP-119-02-F-DH-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.43 mm
Insulation Height	0.135 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	38
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder
Voltage Rating	330 VDC, 240 VAC

CLP-119 Series

Part	Contact Finish - Mating	Termination	Number of Positions Loaded	Voltage Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Connector Type	Insulation Height	Insulation Height	Current Rating (Amps)	Insulation Material	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Type	Mounting Type	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. CLP-119-02-F-D-PA-TR	Gold	Solder	All	240 VAC 330 VDC	38	3 µin	0.076 µm	UL94 V-0	Receptacle	0.084 in	2.14 mm	3.3 A	Liquid Crystal Polymer (LCP)	Pick and Place	0.05 in	1.27 mm	Square	-55 °C	125 °C	Phosphor Bronze	Push-Pull	0.05 in	1.27 mm	2	Female Socket	Surface Mount	Tin	Black
Samtec Inc. CLP-119-02-F-D-P	Gold	Solder	All	240 VAC 330 VDC	38	3 µin	0.076 µm	UL94 V-0	Receptacle	0.084 in	2.14 mm	3.3 A	Liquid Crystal Polymer (LCP)	Pick and Place	0.05 in	1.27 mm	Square	-55 °C	125 °C	Phosphor Bronze	Push-Pull	0.05 in	1.27 mm	2	Female Socket	Surface Mount	Tin	Black
Samtec Inc. CLP-119-02-G-D-A-K	Gold	Solder	All	240 VAC 330 VDC	38	10 çin	0.25 çm	UL94 V-0	Receptacle	0.084 in	2.14 mm	3.3 A	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	0.05 in	1.27 mm	Square	-55 °C	125 °C	Phosphor Bronze	Push-Pull	0.05 in	1.27 mm	2	Female Socket	Surface Mount	Gold	Black	3 µin	0.076 µm
Samtec Inc. CLP-119-02-F-D-A-K	Gold	Solder	All	240 VAC 330 VDC	38	3 µin	0.076 µm	UL94 V-0	Receptacle	0.084 in	2.14 mm	3.3 A	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	0.05 in	1.27 mm	Square	-55 °C	125 °C	Phosphor Bronze	Push-Pull	0.05 in	1.27 mm	2	Female Socket	Surface Mount	Tin	Black
Samtec Inc. CLP-119-02-L-D-BE-A-P	Gold	Solder	All	240 VAC 330 VDC	38	10 çin	0.25 çm	UL94 V-0	Receptacle Bottom Entry	0.084 in	2.14 mm	3.3 A	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	0.05 in	1.27 mm	Square	-55 °C	125 °C	Phosphor Bronze	Push-Pull	0.05 in	1.27 mm	2	Female Socket	Surface Mount	Tin	Black
Samtec Inc. CLP-119-02-S-D-K-TR	Gold	Solder	All	240 VAC 330 VDC	38	30 Áin	0.76 Ám	UL94 V-0	Receptacle	0.084 in	2.14 mm	3.3 A	Liquid Crystal Polymer (LCP)	Pick and Place	0.05 in	1.27 mm	Square	-55 °C	125 °C	Phosphor Bronze	Push-Pull	0.05 in	1.27 mm	2	Female Socket	Surface Mount	Tin	Black
Samtec Inc. CLP-119-02-F-DH-TR	Gold	Solder	All	240 VAC 330 VDC	38	3 µin	0.076 µm	UL94 V-0	Receptacle	0.135 "	3.43 mm	3.3 A	Liquid Crystal Polymer (LCP)		0.05 in	1.27 mm	Square	-55 °C	125 °C	Phosphor Bronze	Push-Pull	0.05 in	1.27 mm	2	Female Socket	Surface Mount Right Angle	Tin	Black
Samtec Inc. CLP-119-02-F-D-K	Gold	Solder	All	240 VAC 330 VDC	38	3 µin	0.076 µm	UL94 V-0	Receptacle	0.084 in	2.14 mm	3.3 A	Liquid Crystal Polymer (LCP)	Pick and Place	0.05 in	1.27 mm	Square	-55 °C	125 °C	Phosphor Bronze	Push-Pull	0.05 in	1.27 mm	2	Female Socket	Surface Mount	Tin	Black
Samtec Inc. CLP-119-02-L-DH	Gold	Solder	All	240 VAC 330 VDC	38	10 çin	0.25 çm	UL94 V-0	Receptacle	0.135 "	3.43 mm	3.3 A	Liquid Crystal Polymer (LCP)		0.05 in	1.27 mm	Square	-55 °C	125 °C	Phosphor Bronze	Push-Pull	0.05 in	1.27 mm	2	Female Socket	Surface Mount Right Angle	Tin	Black
Samtec Inc. CLP-119-02-L-D-BE-A-P-TR	Gold	Solder	All	240 VAC 330 VDC	38	10 çin	0.25 çm	UL94 V-0	Receptacle Bottom Entry	0.084 in	2.14 mm	3.3 A	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	0.05 in	1.27 mm	Square	-55 °C	125 °C	Phosphor Bronze	Push-Pull	0.05 in	1.27 mm	2	Female Socket	Surface Mount	Tin	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	875	$ 3.17

Description

General part information

CLP-119 Series

38 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
