56K132-K00L5
ActiveRosenberger

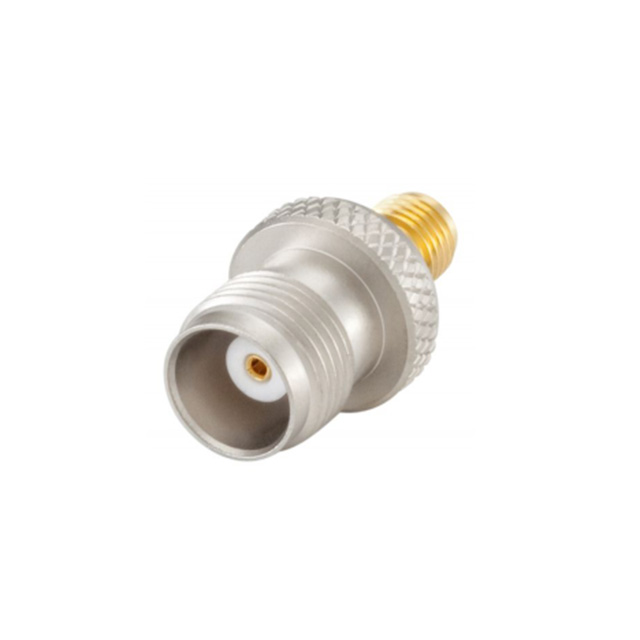

CONN ADAPT SMA JACK TO TNC JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
56K132-K00L5
ActiveRosenberger
CONN ADAPT SMA JACK TO TNC JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 56K132-K00L5 |
|---|---|
| Adapter Series | SMA to TNC |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel, Gold |
| Body Material | Beryllium Copper, Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 10 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.05 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 49.71 | |
| 10 | $ 45.61 | |||
| 25 | $ 43.86 | |||
| 50 | $ 42.40 | |||
| 100 | $ 40.06 | |||
| 250 | $ 38.89 | |||
Description
General part information
56K132 Series
Adapter Coaxial Connector TNC Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
