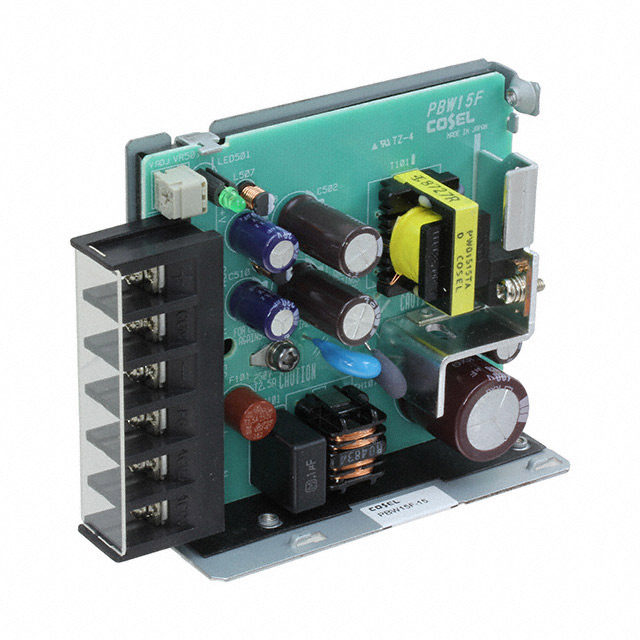

PBW15F-15

Active

Cosel USA, Inc.

AC/DC CONVERTER +/-15V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PBW15F-15

Active

Cosel USA, Inc.

AC/DC CONVERTER +/-15V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBW15F-15

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	500 mA
Current - Output 2	1 A
Efficiency	80 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Power (Watts)	15 W
Type	Open Frame
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

PBW15F Series

Part	Voltage - Isolation	Current - Output 1	Approval Agency	Applications	Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 2	Mounting Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Voltage - Output 2	Features	Power (Watts)
Cosel USA, Inc. PBW15F-15-E	3000 V	500 mA	CE cURus TUV	ITE (Commercial)	Open Frame	2	31 mm	1.22 "	85.1 mm	3.35 in	3.07 in	78 mm	1 A	Chassis Mount	80 %	-10 °C	71 °C	15 V	-15 V
Cosel USA, Inc. PBW15F-15-C	3000 V	500 mA	CE cURus TUV	ITE (Commercial)	Open Frame	2	31 mm	1.22 "	85.1 mm	3.35 in	3.07 in	78 mm	1 A	Chassis Mount	80 %	-10 °C	71 °C	15 V	-15 V
Cosel USA, Inc. PBW15F-15-G	3000 V	500 mA	CE cURus TUV	ITE (Commercial)	Open Frame	2	31 mm	1.22 "	85.1 mm	3.35 in	3.07 in	78 mm	1 A	Chassis Mount	80 %	-10 °C	71 °C	15 V	-15 V
Cosel USA, Inc. PBW15F-12-VN	3000 V	700 mA	CE cURus TUV	ITE (Commercial)	Open Frame	2	31 mm	1.22 "	85.1 mm	3.35 in	3.07 in	78 mm	1.4 A	Chassis Mount	77 %	-10 °C	71 °C	12 V	-12 V
Cosel USA, Inc. PBW15F-15-T	3000 V	500 mA	CE cURus TUV	ITE (Commercial)	Open Frame	2	31 mm	1.22 "	85.1 mm	3.35 in	3.07 in	78 mm	1 A	Chassis Mount	80 %	-10 °C	71 °C	15 V	-15 V
Cosel USA, Inc. PBW15F-15		500 mA	CE cURus TUV	ITE (Commercial)	Open Frame	2							1 A	Chassis Mount	80 %			15 V	-15 V	DC Input Capable Universal Input	15 W
Cosel USA, Inc. PBW15F-15-N1	3000 V	500 mA	CE cURus TUV	ITE (Commercial)	Open Frame	2	31 mm	1.22 "	85.1 mm	3.35 in	3.07 in	78 mm	1 A	Chassis Mount	80 %	-10 °C	71 °C	15 V	-15 V
Cosel USA, Inc. PBW15F-12-C	3000 V	700 mA	CE cURus TUV	ITE (Commercial)	Open Frame	2	31 mm	1.22 "	85.1 mm	3.35 in	3.07 in	78 mm	1.4 A	Chassis Mount	77 %	-10 °C	71 °C	12 V	-12 V
Cosel USA, Inc. PBW15F-12-N1	3000 V	700 mA	CE cURus TUV	ITE (Commercial)	Open Frame	2	31 mm	1.22 "	85.1 mm	3.35 in	3.07 in	78 mm	1.4 A	Chassis Mount	77 %	-10 °C	71 °C	12 V	-12 V
Cosel USA, Inc. PBW15F-15-N		500 mA	CE cURus TUV	ITE (Commercial)	Open Frame	2							1 A	Chassis Mount	80 %			15 V	-15 V	DC Input Capable Universal Input	15 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.43
		5	$ 44.22
		10	$ 43.30
		25	$ 42.99
		50	$ 50.36
		100	$ 48.63

Description

General part information

PBW15F Series

Open Frame AC DC Converters 2 Output 15V -15V 85 ~ 264 VAC Input

Documents

Technical documentation and resources
